CarveWright Bits have been rigorously tested to ensure the best results with CarveWright CNC Systems.  Futhermore, each bit’s specifications are already in the software with all the needed feed and speed rates pre-programmed for true plug-n-play functionality.

CUTTING & CARVING BITS

CARVING BITS

Carving bits are used for the carving or “raster” functions the CarveWright system is famous for.  This bits are what you use for the detailed pattern carving and shaping.

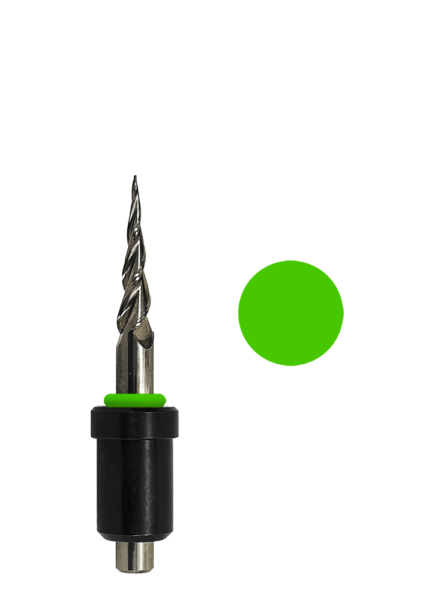

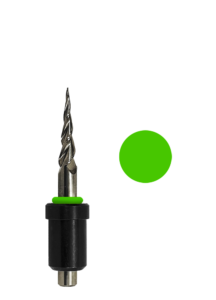

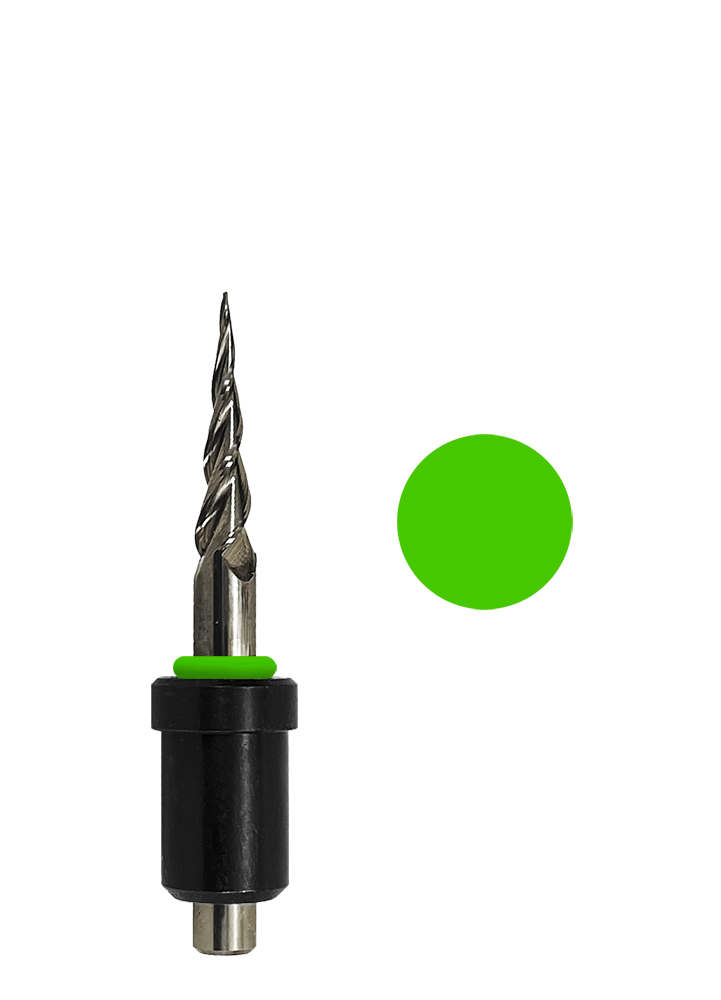

BCR03125P

1/32″ Carving Bit

For fine detail Carvings

Tapered, three flute, ¼ inch shaft, solid carbide, 1/32 inch ballnose, carving bit. This bit is used for fine detail carving/raster operations.

Specifications
• Max carving depth with this bit is .8 inch.

• CarveTight hard pressed Adapter.
• Requires Project Designer PRO 3 or higher.

$39.99 BUY NOW

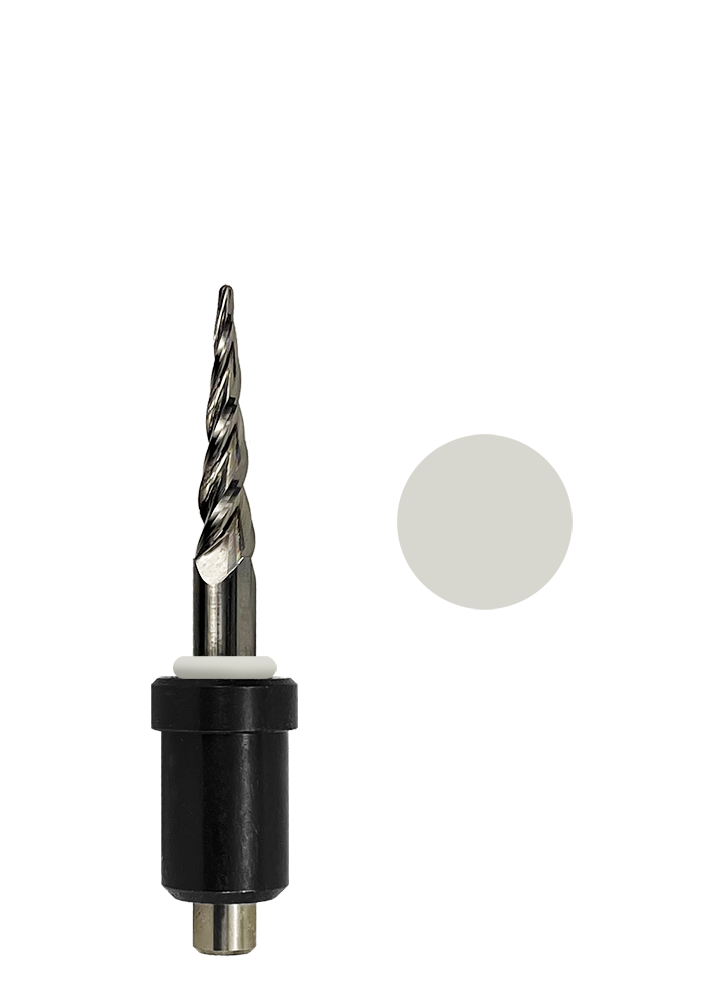

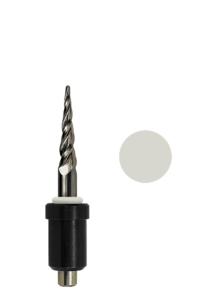

BCR062P

1/16″ Carving Bit

The Default Carving Bit

Tapered, three flute, ¼ inch shaft, solid carbide, 1/16 inch ballnose, carving bit. This is the DEFAULT bit for carving/raster operations. Included with CarveWright.

Specifications
• Max carving depth with this bit is .8 inch.

• CarveTight hard pressed Adapter.
• Works with all versions of Project Designer.

$39.99 BUY NOW

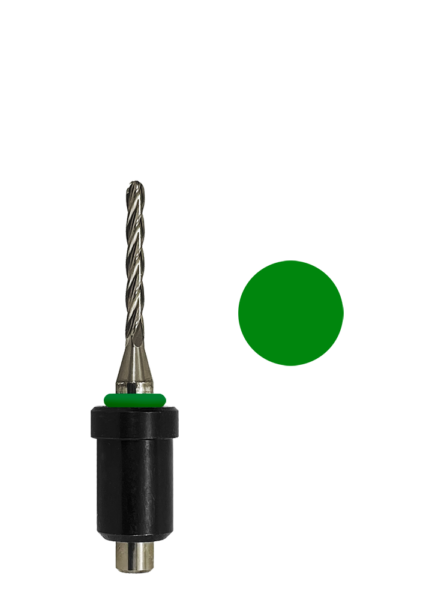

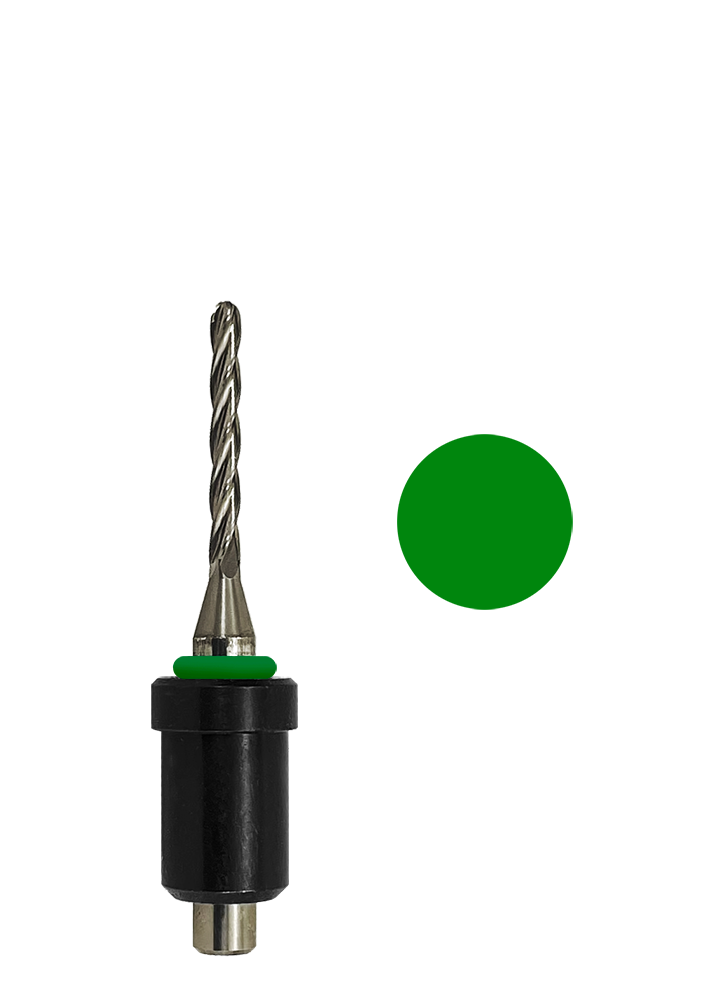

BCR125P

1/8″ Carving Bit

For Carving Foam and Soft Materials

Straight, three flute, ¼ inch shaft, solid carbide, 1/8″ ballnose, carving bit. This bit allows for carvings in ONLY soft materials such as basswood or foam.

Specifications
• Max carving depth with this bit is .8 inch.

• CarveTight hard pressed Adapter.
• Works with Project Designer BASIC and PRO.

$39.99 BUY NOW

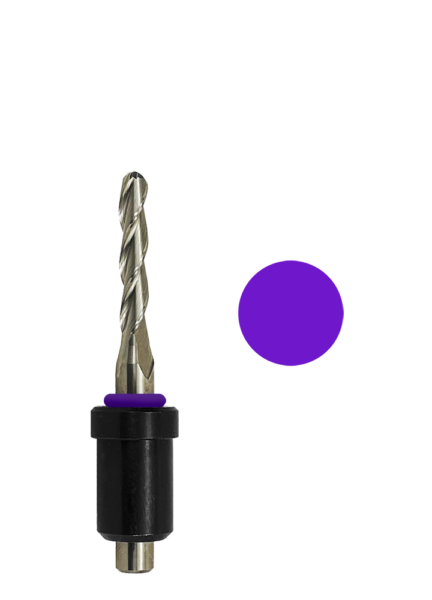

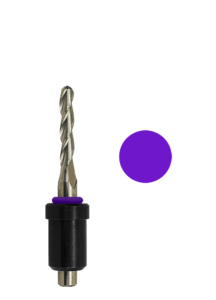

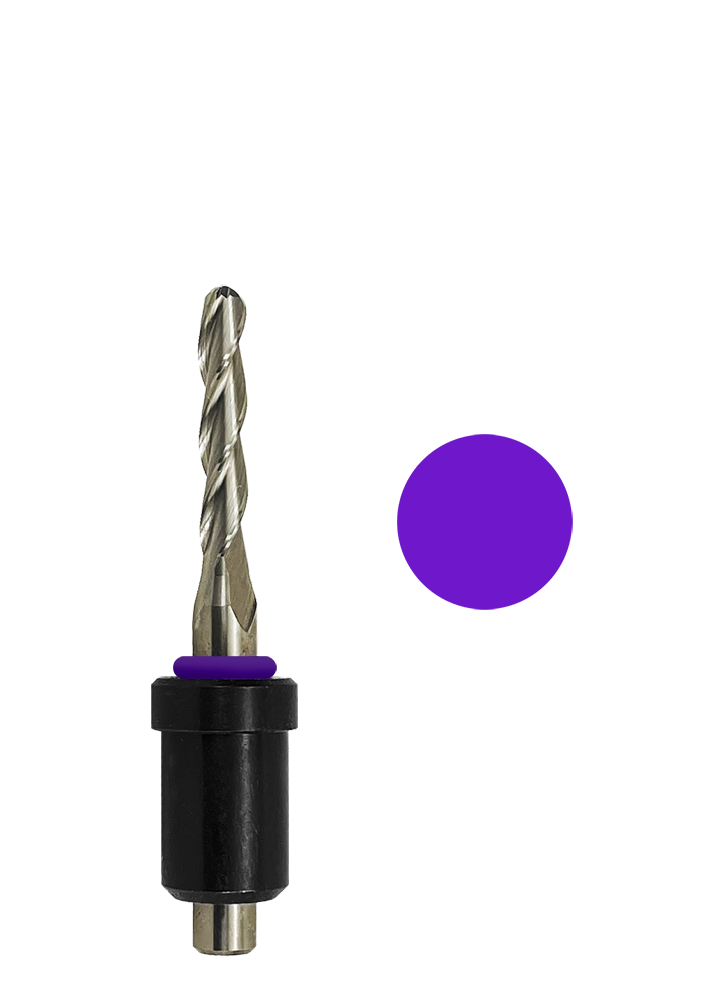

BCR187P

3/16″ Carving Bit

For Faster Carving of Large Projects

Straight, three flute, ¼ inch shaft, solid carbide, 3/16 inch ballnose, carving bit. This bit allows for faster carving for larger projects. Since this bit has no taper, it leaves straight edges.

Specifications
• Max carving depth with this bit is .8 inch.

• Requires CarveTight Spindle System.
• Works with Project Designer BASIC and PRO.

$39.99 BUY NOW

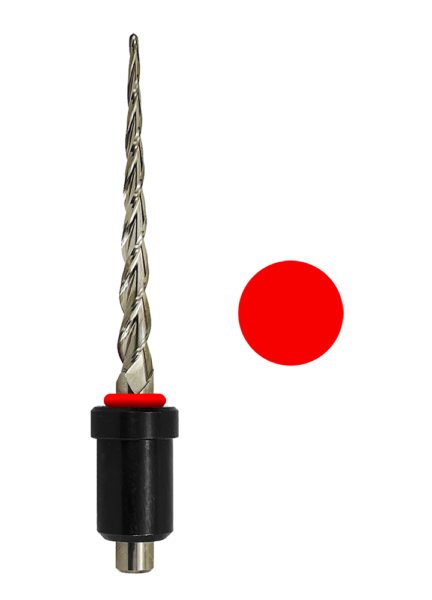

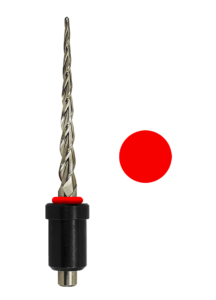

LBCR062P

1/16″ Long Carving Bit

For fine detail Deep Carvings

Tapered, three flute, ¼ inch shaft, solid carbide, 1/16 inch ballnose, long carving bit. This bit is used for fine detail deep carving/raster operations.
LEARN MORE>

Specifications
• Max carving depth with this bit is 2.125 inch.

• Requires CarveTight Spindle System.
• Requires Project Designer PRO 2 or higher.

$79.99 BUY NOW

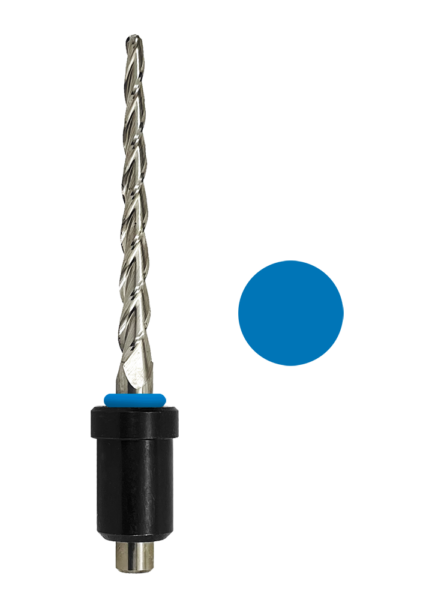

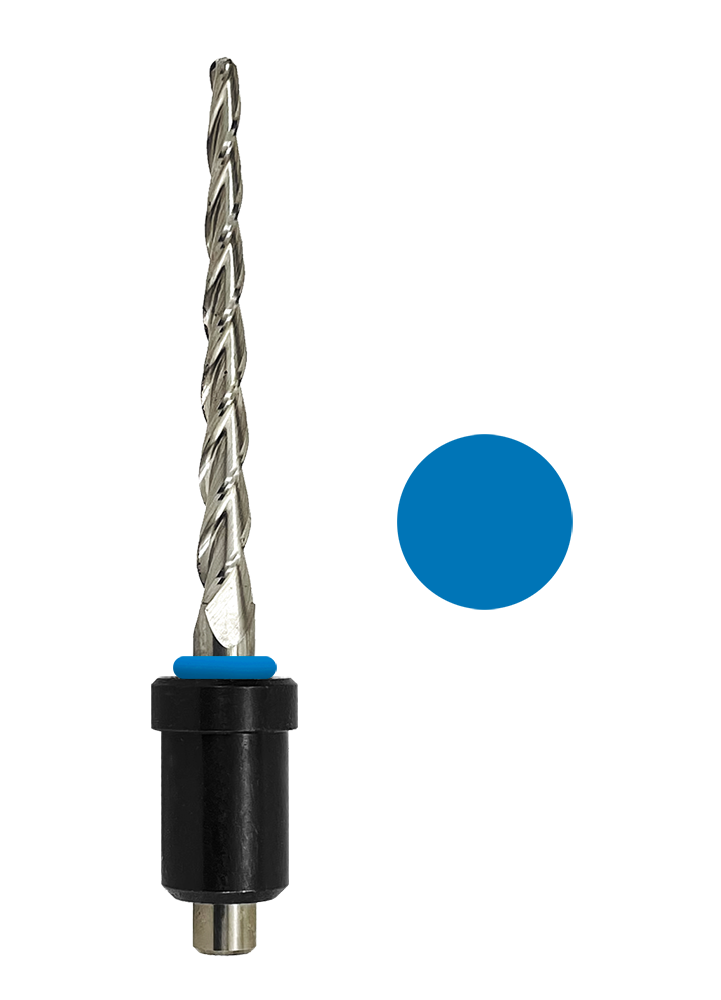

LBCR125P

1/8″ Long Carving Bit

For Deep Carving In Hard Materials

Tapered, three flute, ¼ inch shaft, solid carbide, 1/8 inch ballnose, long carving bit. This bit is used for fine detail carving/raster operations in harder materials.
LEARN MORE>

Specifications
• Max carving depth with this bit is 2.125 inch.

• Requires CarveTight Spindle System.
• Requires Project Designer PRO 2 or higher.

$79.99 BUY NOW

CUTTING BITS

Cutting bits are used mostly for doing vector cutout functions. The bit will follow a path, or line, designated in the software to cut an object out, drill holes, or route lines into the material.

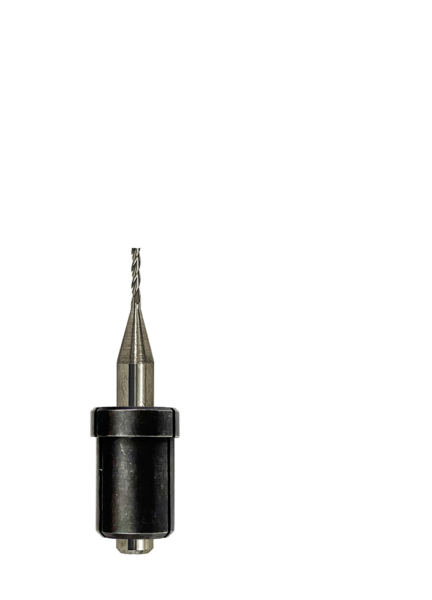

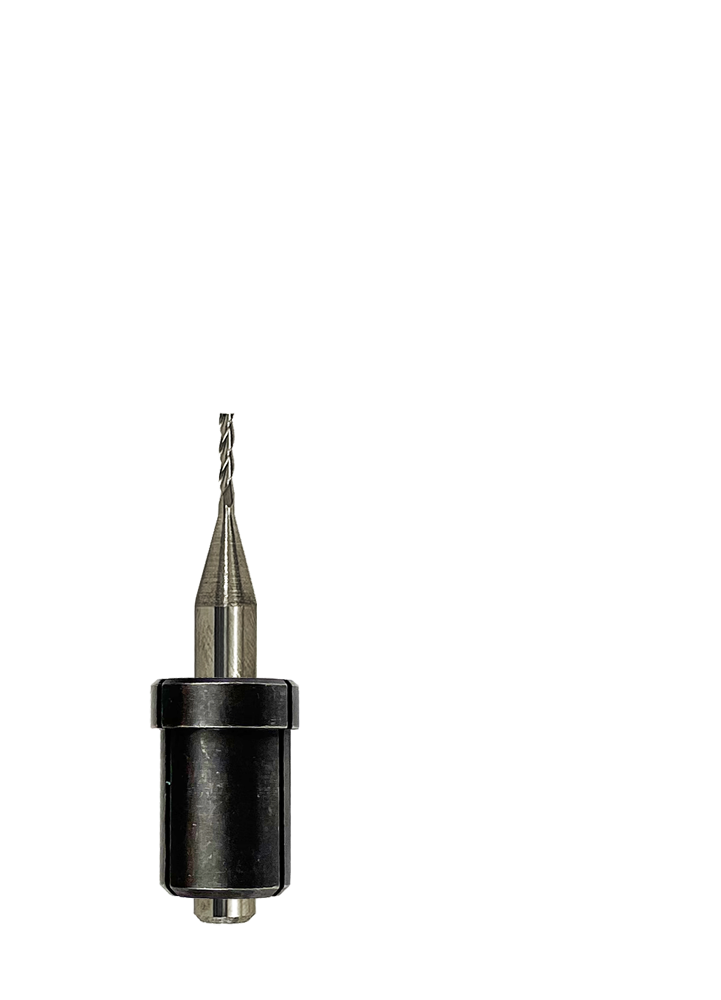

BCT062P

1/16″ Cutting Bit

For shallow intricate cuts

Straight, three flute, ¼ inch shaft, solid carbide, 1/16 inch endmill, cutting bit. This bit is used for fine detail and intricate cutout operations.

Specifications
• Max cutting depth with this bit is 1/4 inch.

• Requires 1/4″ Split Collet.
• Works with Project Designer BASIC and PRO.

$39.99 BUY NOW

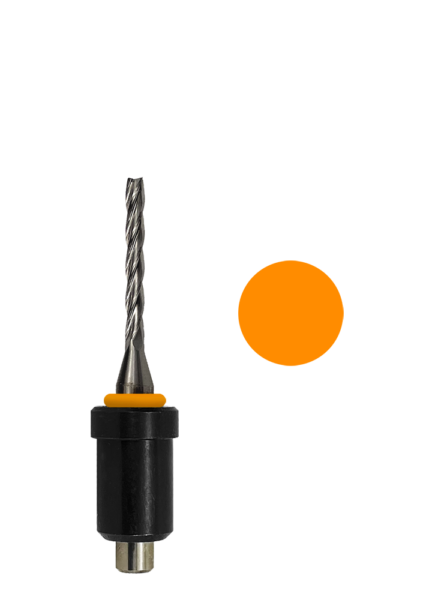

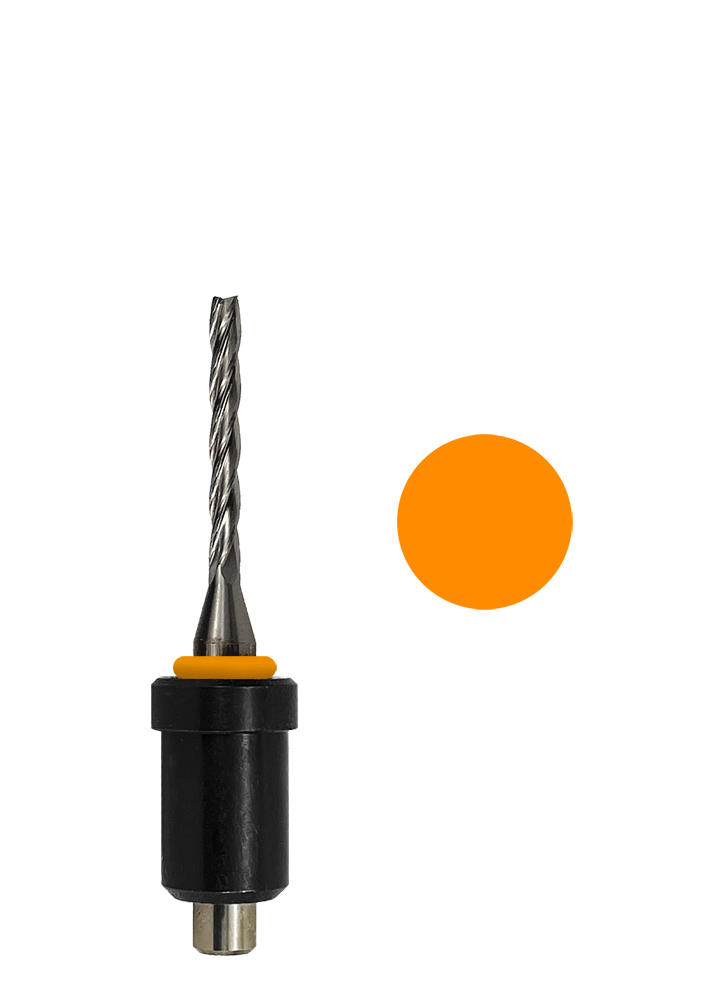

BCT125P

1/8″ Cutting Bit

For cuts in soft or medium hard materials

Straight, three flute, ¼ inch shaft, solid carbide, 1/8 inch endmill, cutting bit. This bit is used for normal cutout operations in soft to moderately hard materials.

Specifications
• Max cutting depth with this bit is 1 inch.

• With CarveTight Adapter.
• Works with Project Designer BASIC and PRO.

$39.99 BUY NOW

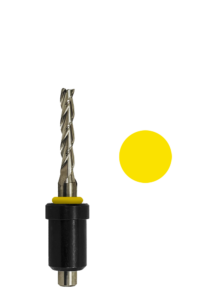

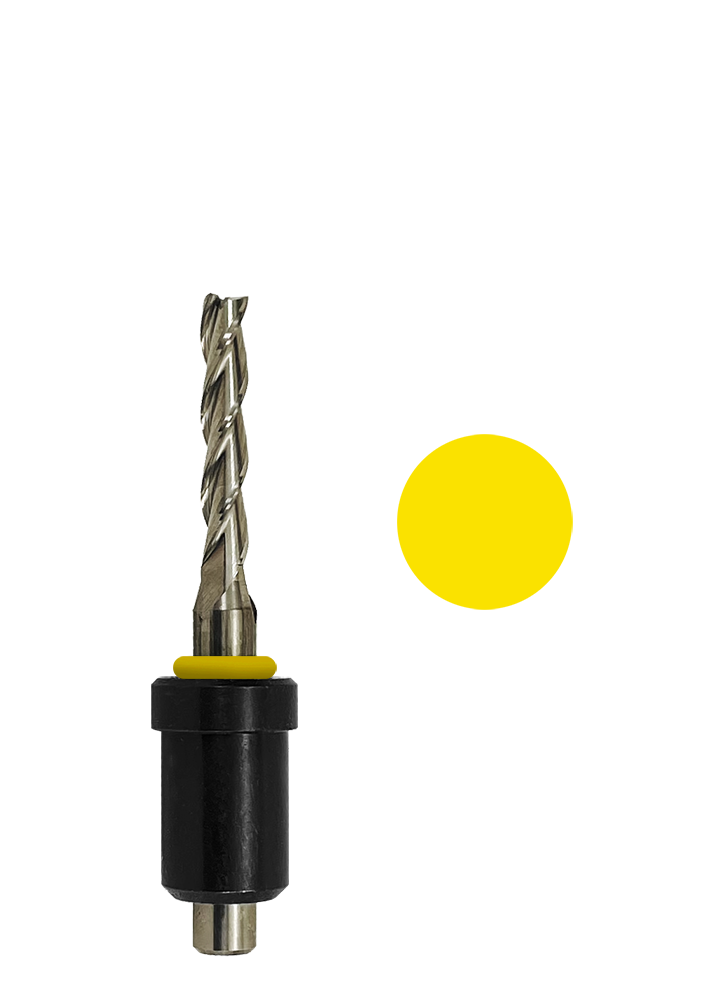

BCT187P

3/16″ Cutting Bit

For cuts in hard or dense materials

Straight, three flute, ¼ inch shaft, solid carbide, 1/32 inch endmill, cutting bit. This bit is used for cutout operations in hard and dense materials.

Specifications
• Max carving depth with this bit is 1 inch.

• Requires CarveTight Spindle System.
• Works with Project Designer BASIC and PRO.

$39.99 BUY NOW

DECORATIVE ROUTER BITS

Configured specifically for the CarveWright System, our top quality carbide decorative bits are designed for long-life and precise cutting performance. These bits are used for a variety of different routing functions.

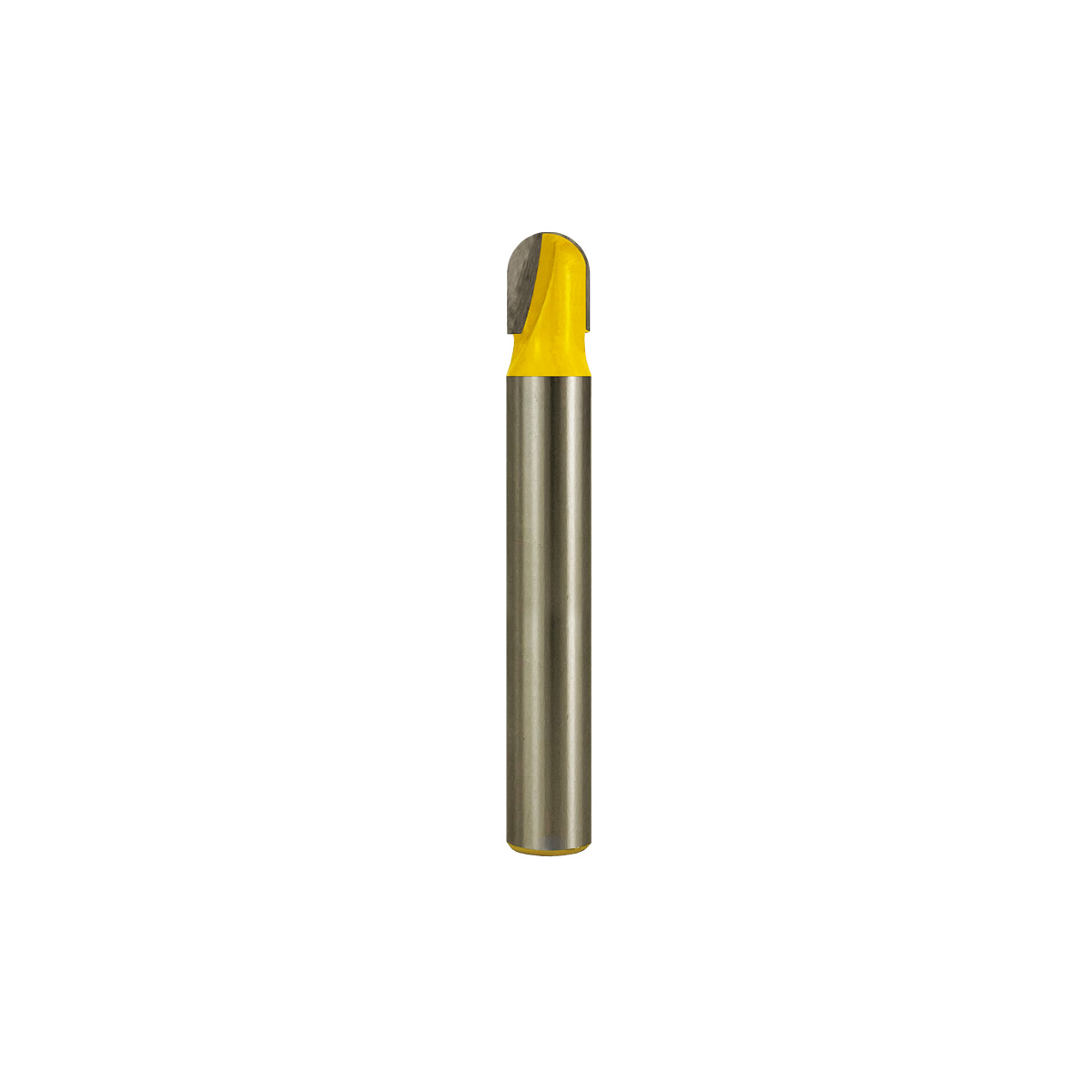

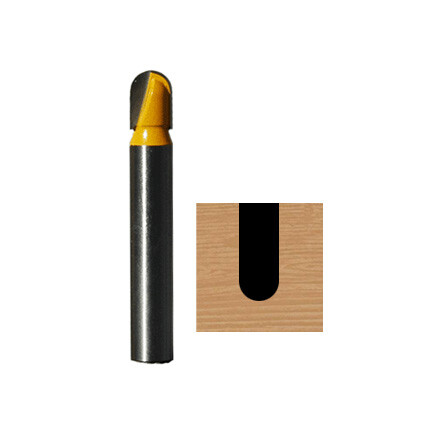

BBN25

1/4″ Ball Nose

Two flute, 1/4 inch steel shank, carbide tipped, with 1/4 inch diameter ball end. Ball nose bits are extremely versatile bits that can be used for decorative line carving, carving profiles, edge work and engraving.

Specifications
• Requires 1/4″ Split Collet for CarveTight
• Requires 1/4″ Stop Collar with CarveTight
• All versions of Project Designer

$29.99 BUY NOW

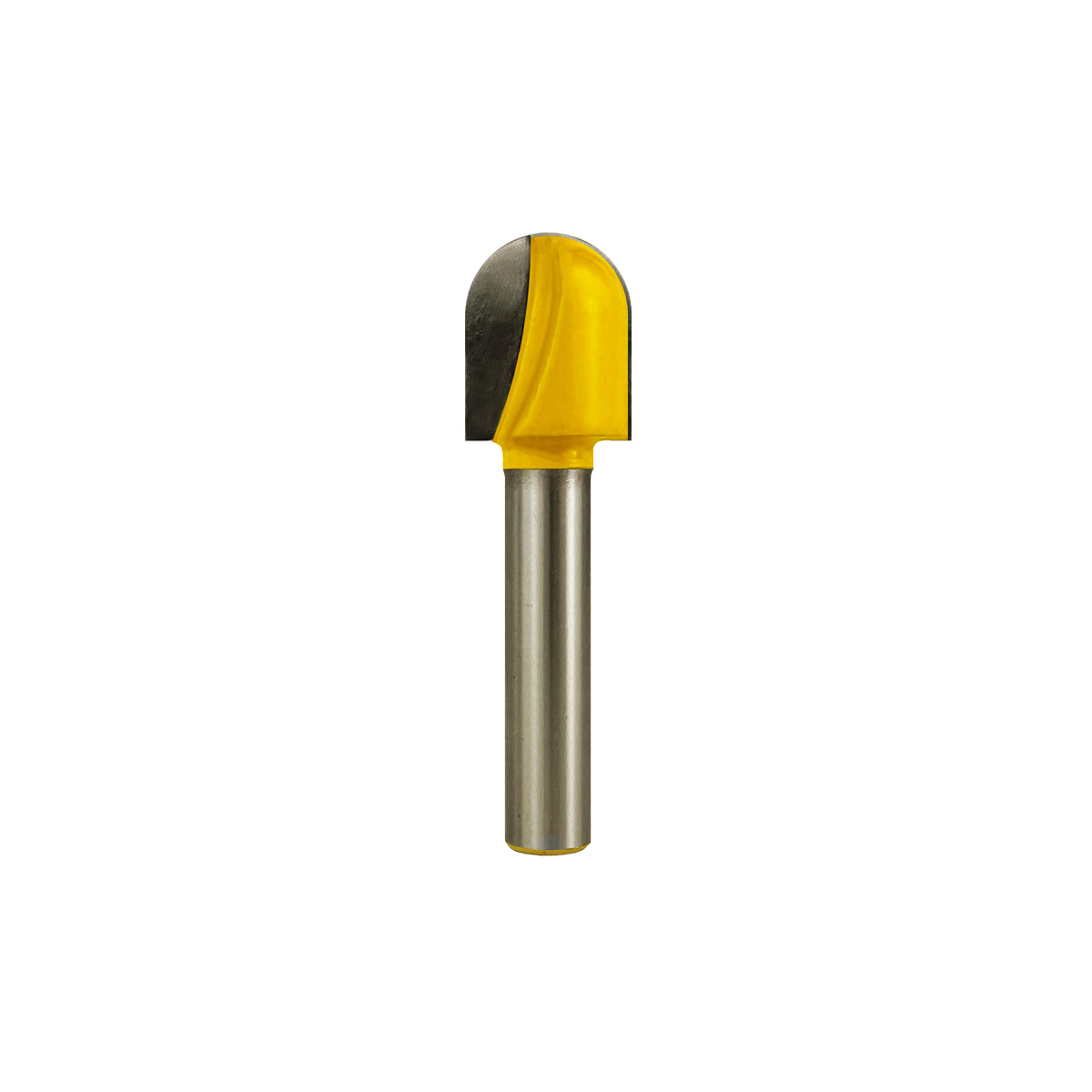

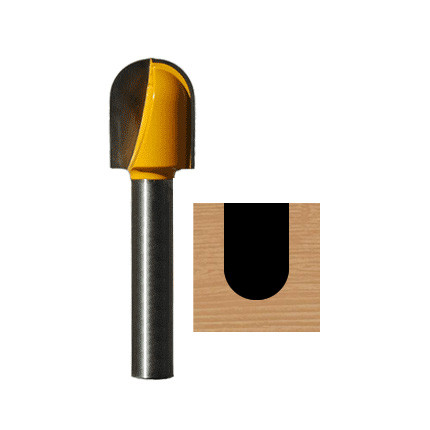

BBN50

1/2″ Ball Nose

Two flute, 1/4 inch steel shank, carbide tipped, with 1/2 inch diameter ball end. Ball nose bits are extremely versatile bits that can be used for decorative line carving, carving profiles, edge work and engraving.

Specifications
• Requires 1/4″ Split Collet for CarveTight
• Requires 1/4″ Stop Collar with CarveTight
• All versions of Project Designer

$29.99 BUY NOW

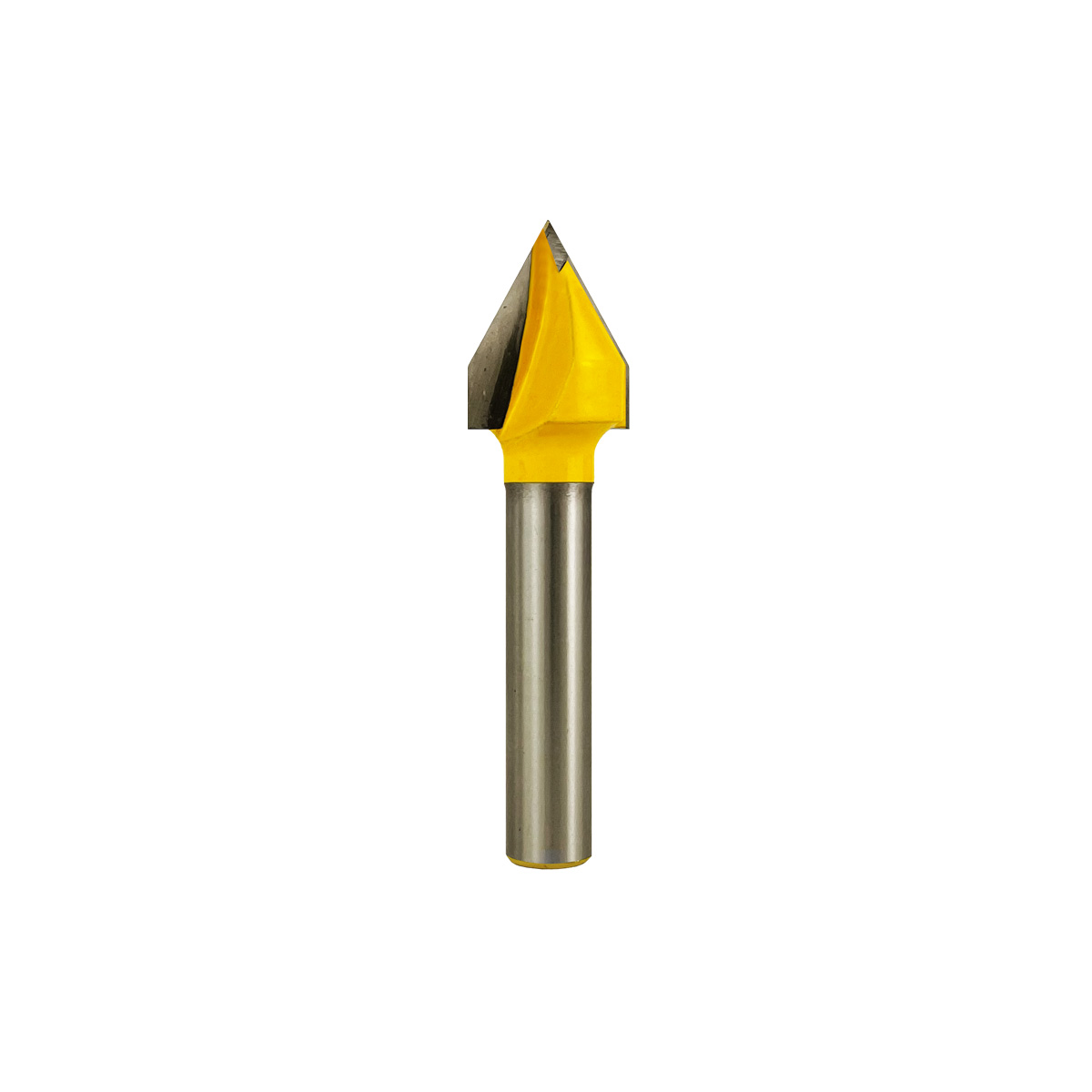

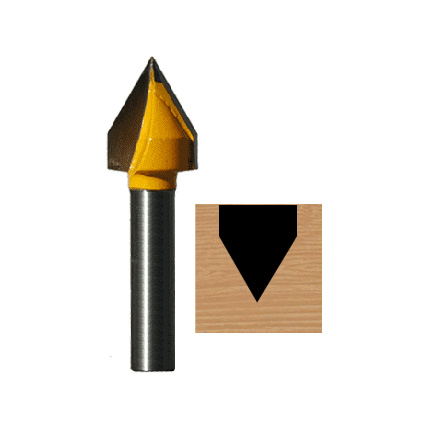

BVG60

60º V Bit

Two flute, 1/4 inch steel shank, carbide tipped, 60º V bit, with Sharp point. They are used for decorative line carving, carving profiles, Centerline Text and chip style Vector Group carvings.

Specifications
• Requires 1/4″ Split Collet for CarveTight
• Requires 1/4″ Stop Collar with CarveTight
• All versions of Project Designer

$35.99 BUY NOW

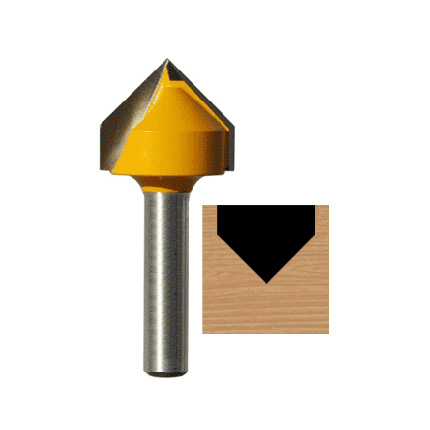

BVG90

90º V Bit

Two flute, 1/4 inch steel shank, carbide tipped, 90º V bit, with Sharp point. They are used for decorative line carving, carving profiles, Centerline Text and chip style Vector Group carvings.

Specifications
• Requires 1/4″ Split Collet for CarveTight
• Requires 1/4″ Stop Collar with CarveTight
• All versions of Project Designer

$35.99 BUY NOW

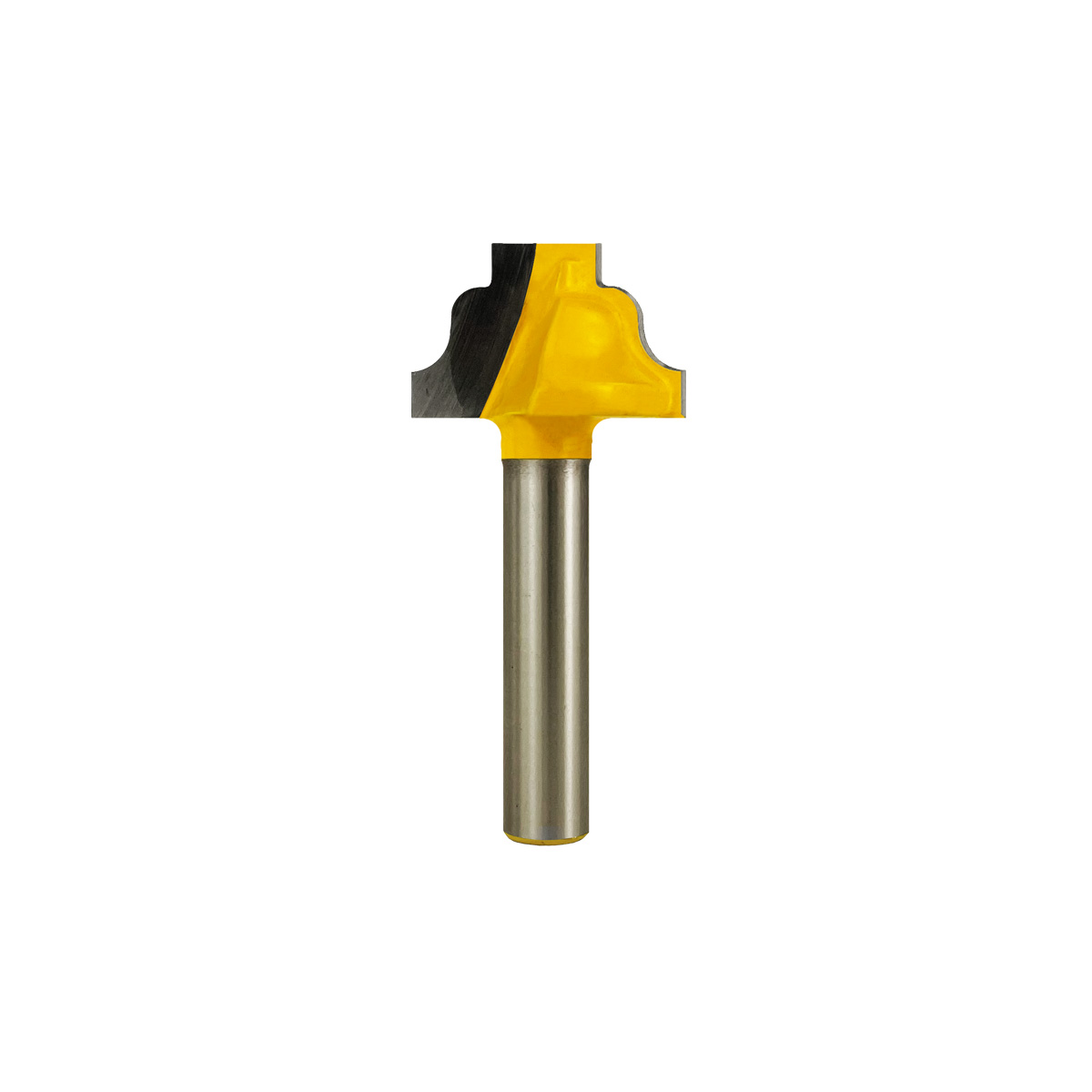

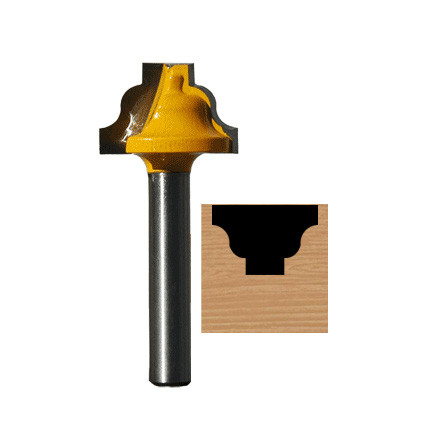

BRO125

1/8″ Roman Ogee

Two cutter, 1/4 inch steel shank, carbide tipped, Roman Ogee bit, with 1/8 inch radius. These bits are used for decorative panel and edge work.

Specifications
• Requires 1/4″ Split Collet for CarveTight
• Requires 1/4″ Stop Collar with CarveTight
• All versions of Project Designer

$35.99 BUY NOW

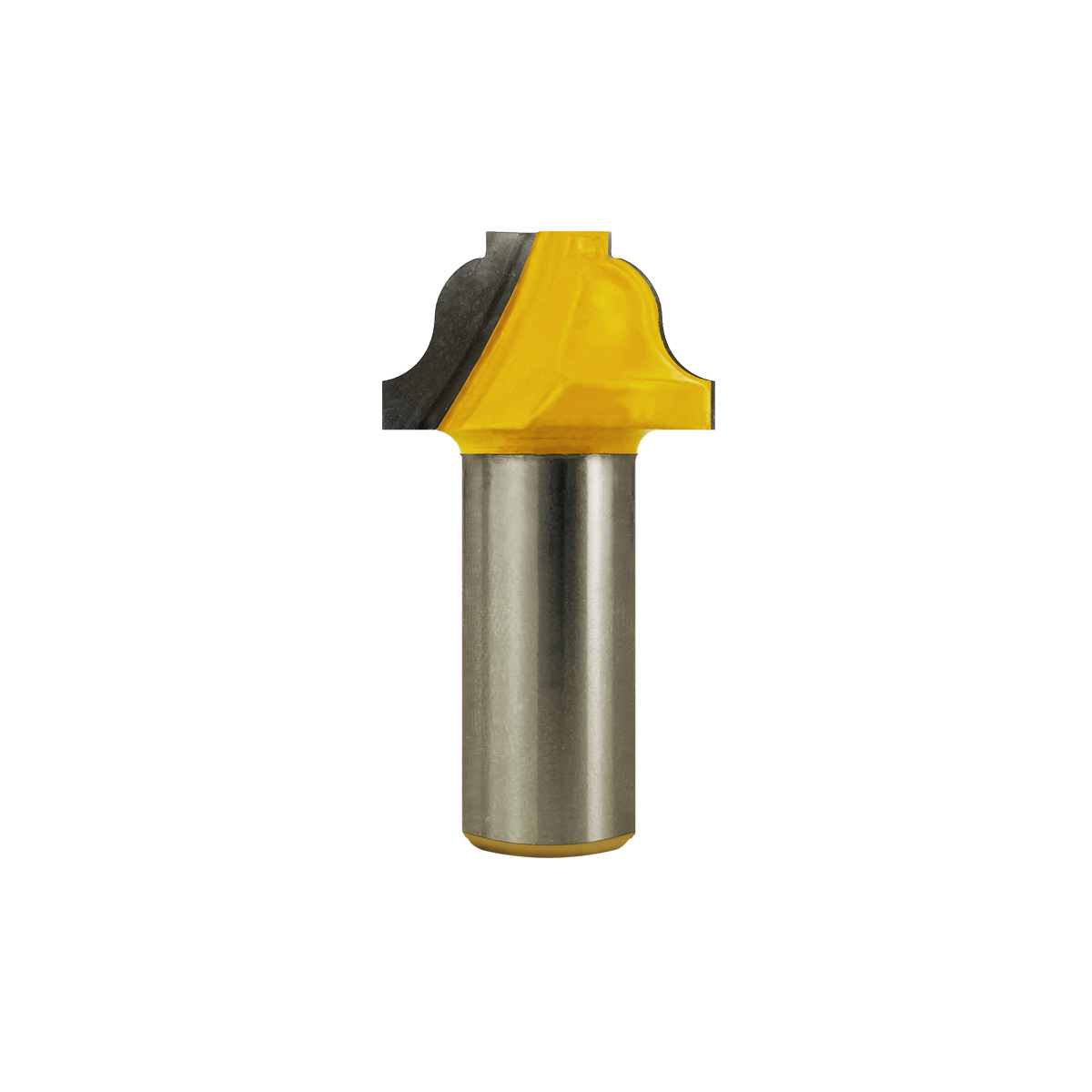

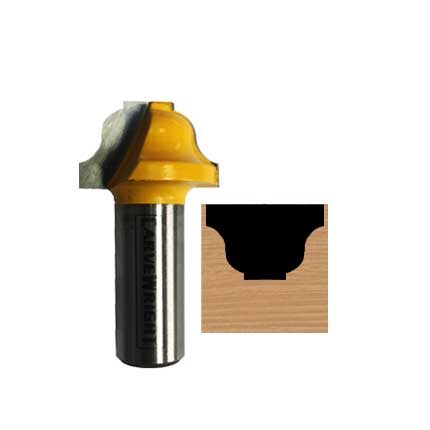

BRO187

3/16″ Roman Ogee

Two flute, 1/2 inch steel shank, carbide tipped, Roman Ogee bit, with 3/16 inch radius. These bits are used for decorative panel and edge work.

Specifications
• Loads Directly Into CarveTight
• Requires 1/2″ Stop Collar with CarveTight
• All versions of Project Designer

$35.99 BUY NOW

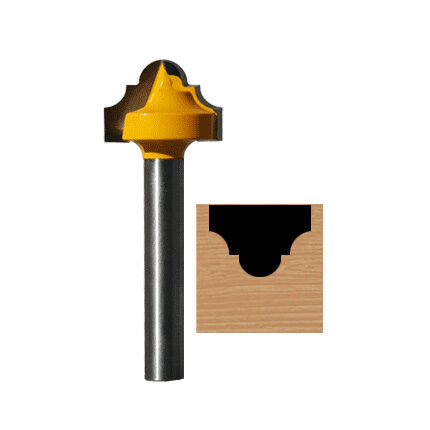

BCO375

3/8″ Classic Ogee

Two flute, 1/4 inch steel shank, carbide tipped, Classical Ogee bit, with 3/8 inch radius. These bits are used for decorative panel and edge work.

Specifications
• Requires 1/4″ Split Collet for CarveTight
• Requires 1/4″ Stop Collar with CarveTight
• All versions of Project Designer

$35.99 BUY NOW

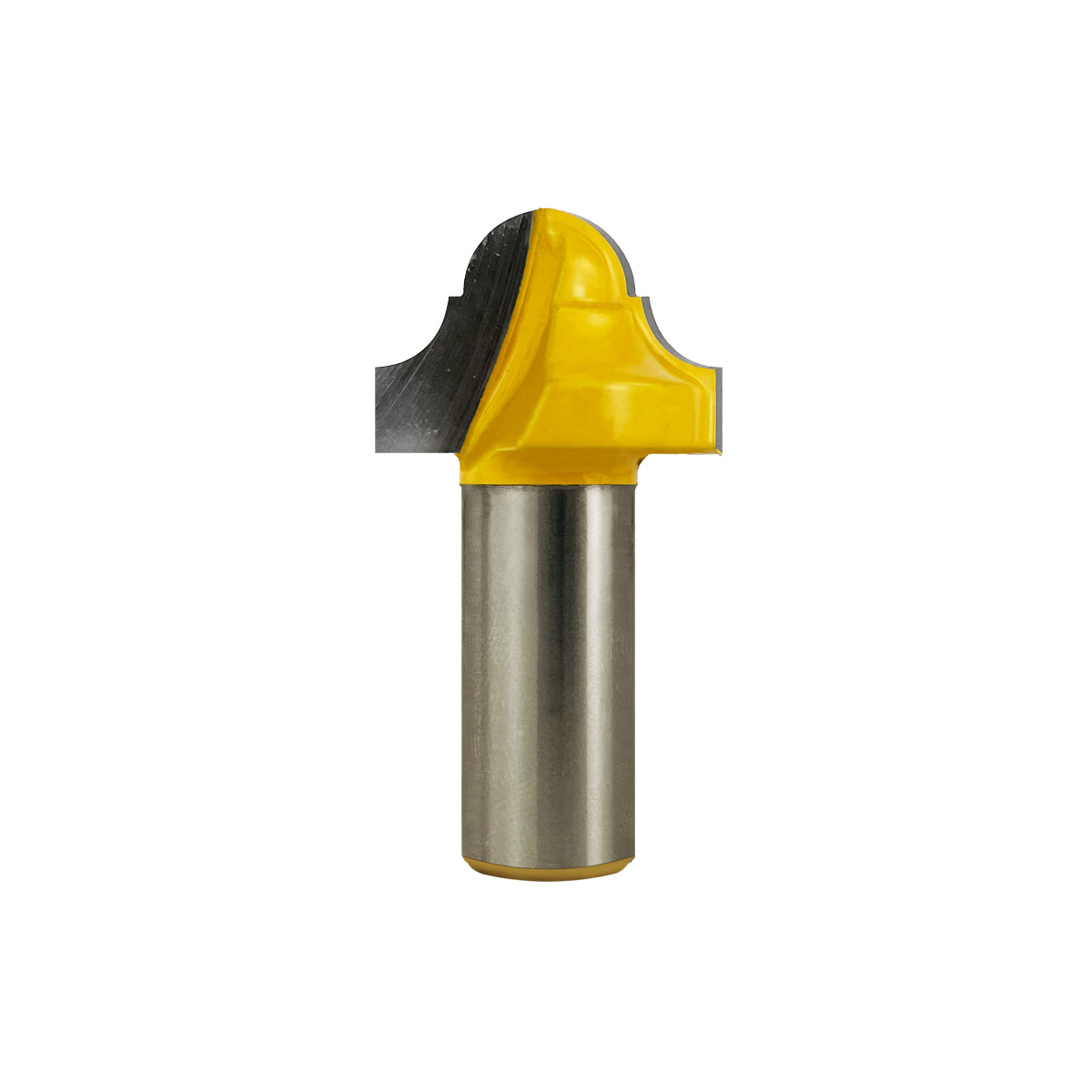

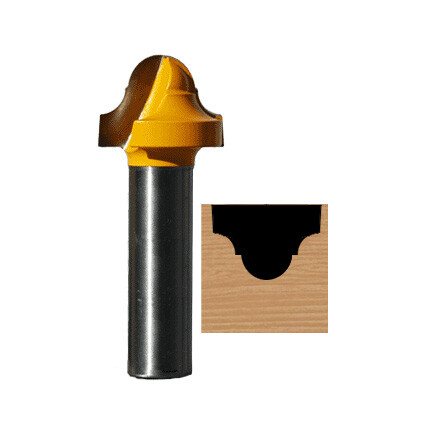

BCO50

1/2″ Classic Ogee

Two flute, 1/2 inch steel shank, carbide tipped, Classical Ogee bit, with 1/2 inch radius. These bits are used for decorative panel and edge work.

Specifications
• Loads Directly Into CarveTight
• Requires 1/2″ Stop Collar with CarveTight
• All versions of Project Designer

$35.99 BUY NOW

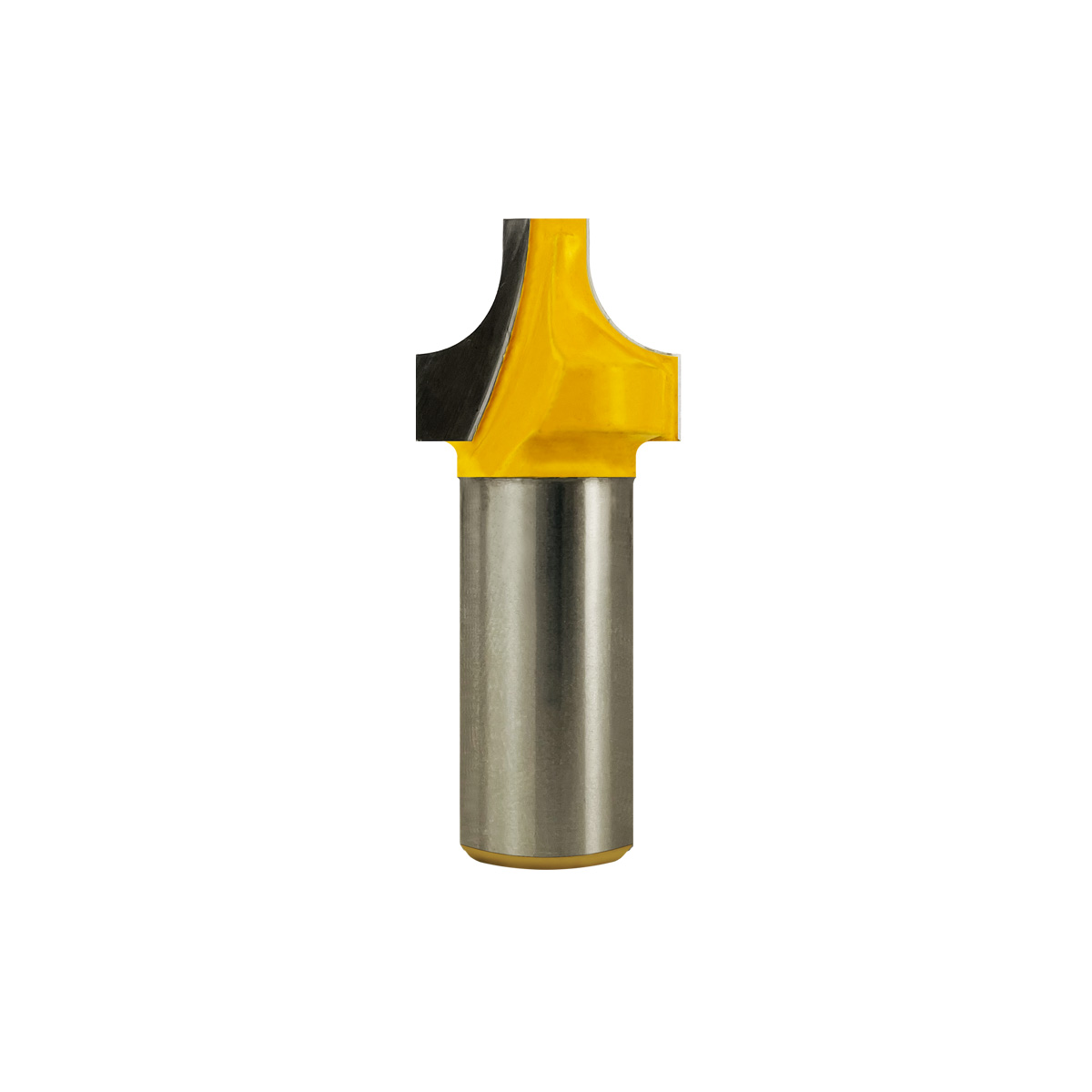

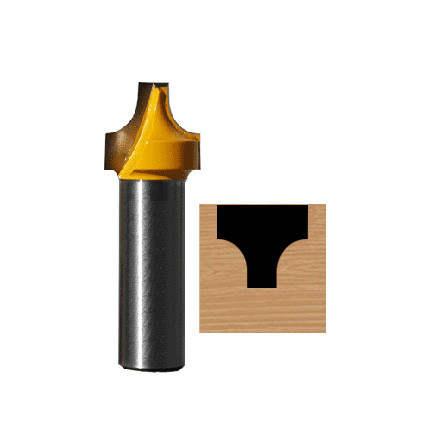

BRD25

1/4” Round Over

Two flute, 1/2 inch steel shank, carbide tipped, round over bit, with 1/4 inch radius. These bits are used for bead, veining, and edge work.

Specifications
• Loads Directly Into CarveTight
• Requires 1/2″ Stop Collar with CarveTight
• All versions of Project Designer

$24.99 BUY NOW

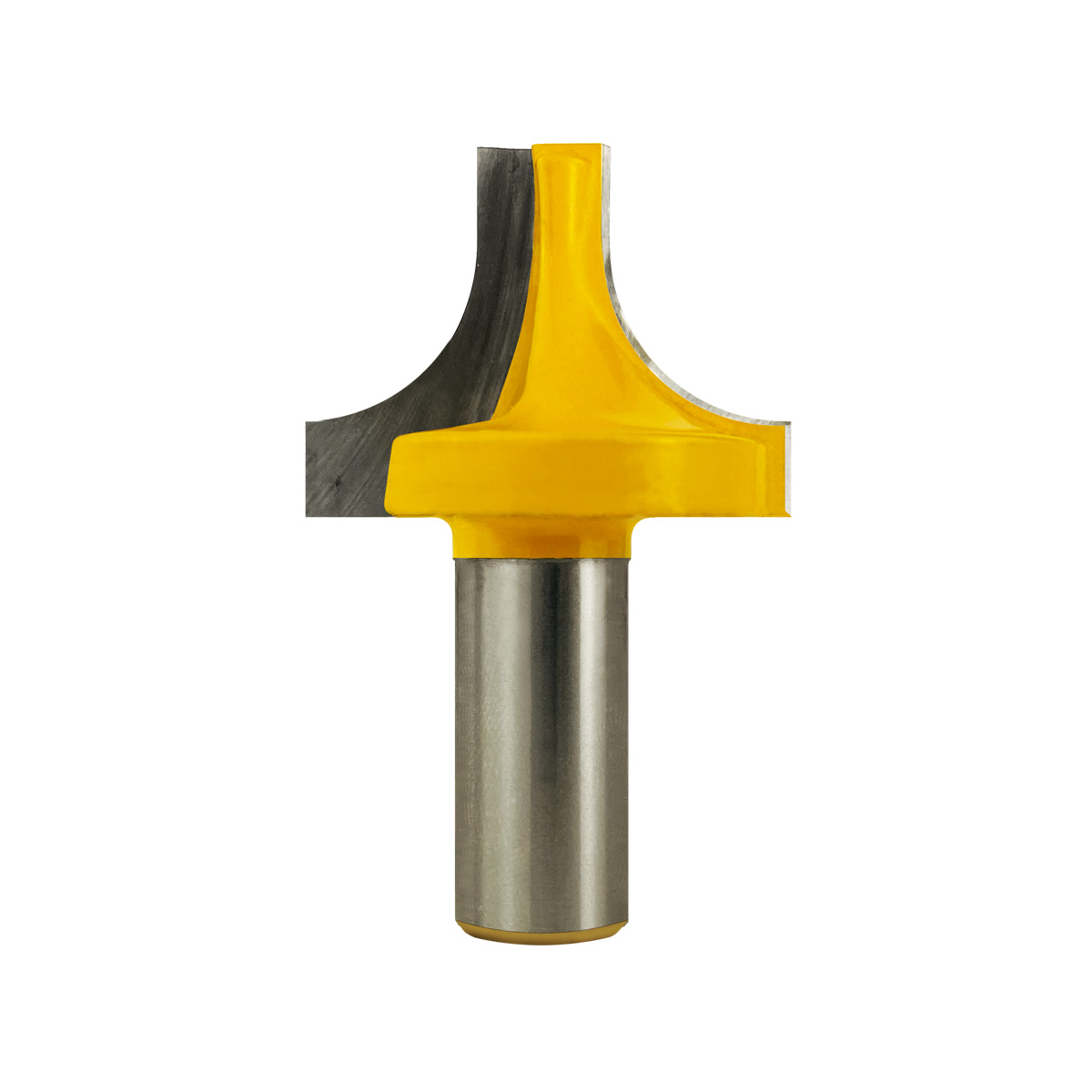

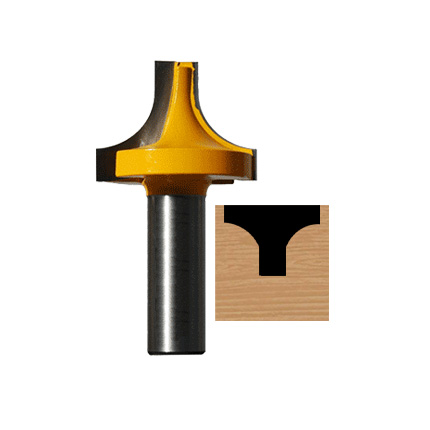

BRD50

1/2” Round Over

Two flute, 1/2 inch steel shank, carbide tipped, round over bit, with 1/2 inch radius. These bits are used for bead, veining, and edge work.

Specifications
• Loads Directly Into CarveTight
• Requires 1/2″ Stop Collar with CarveTight
• All versions of Project Designer

$35.99 BUY NOW

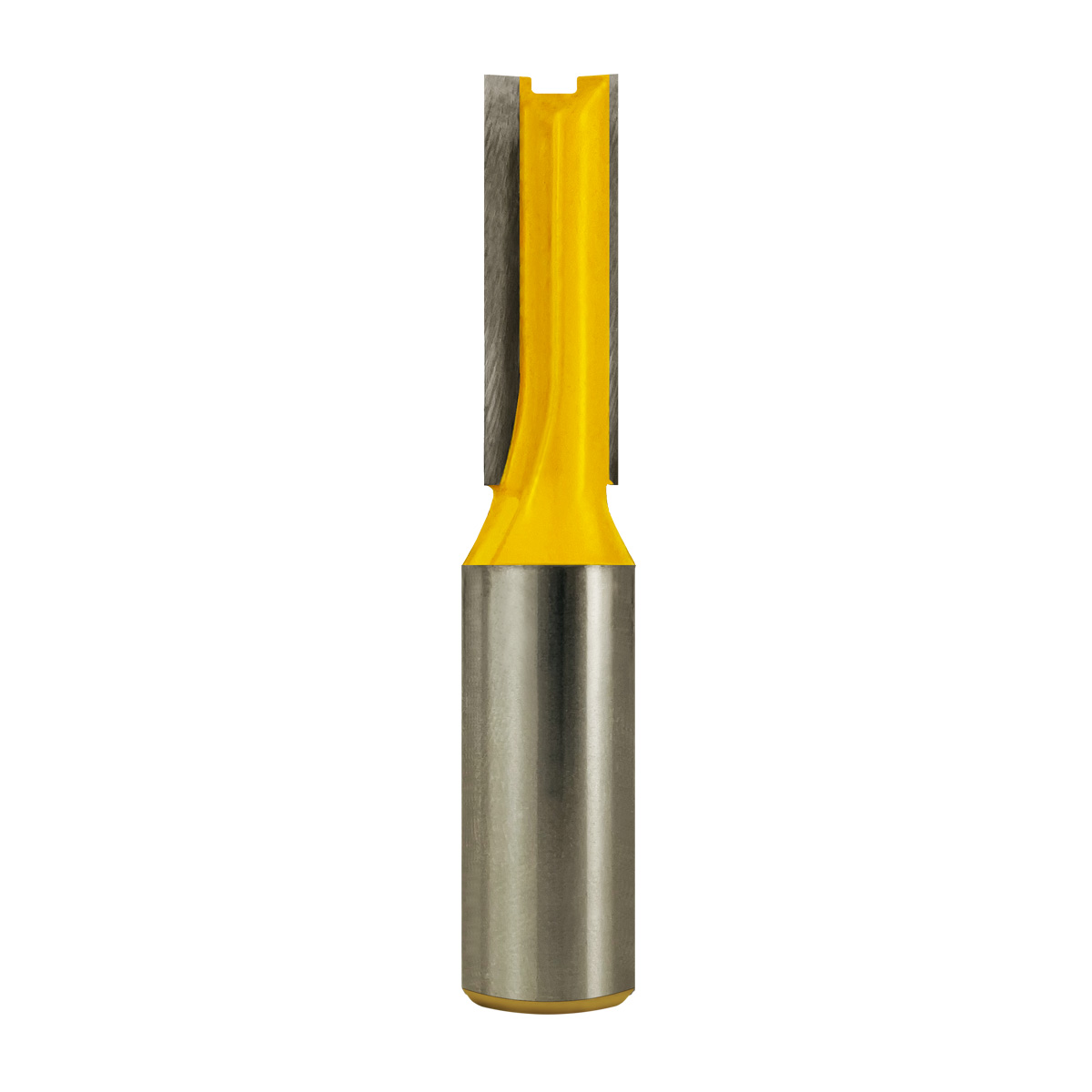

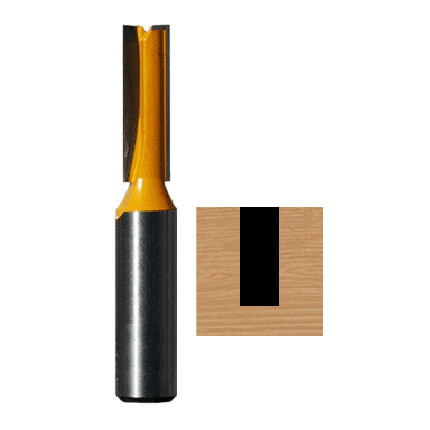

BST375

3/8″ Straight Bit

Two flute, 1/2 inch steel shank, carbide tipped, straight bit, with 3/8 inch diameter. These bits are used for jointing, pocket cutting, and edge work.

Specifications
• Loads Directly Into CarveTight
• Requires 1/2″ Stop Collar with CarveTight
• All versions of Project Designer

$19.99 BUY NOW

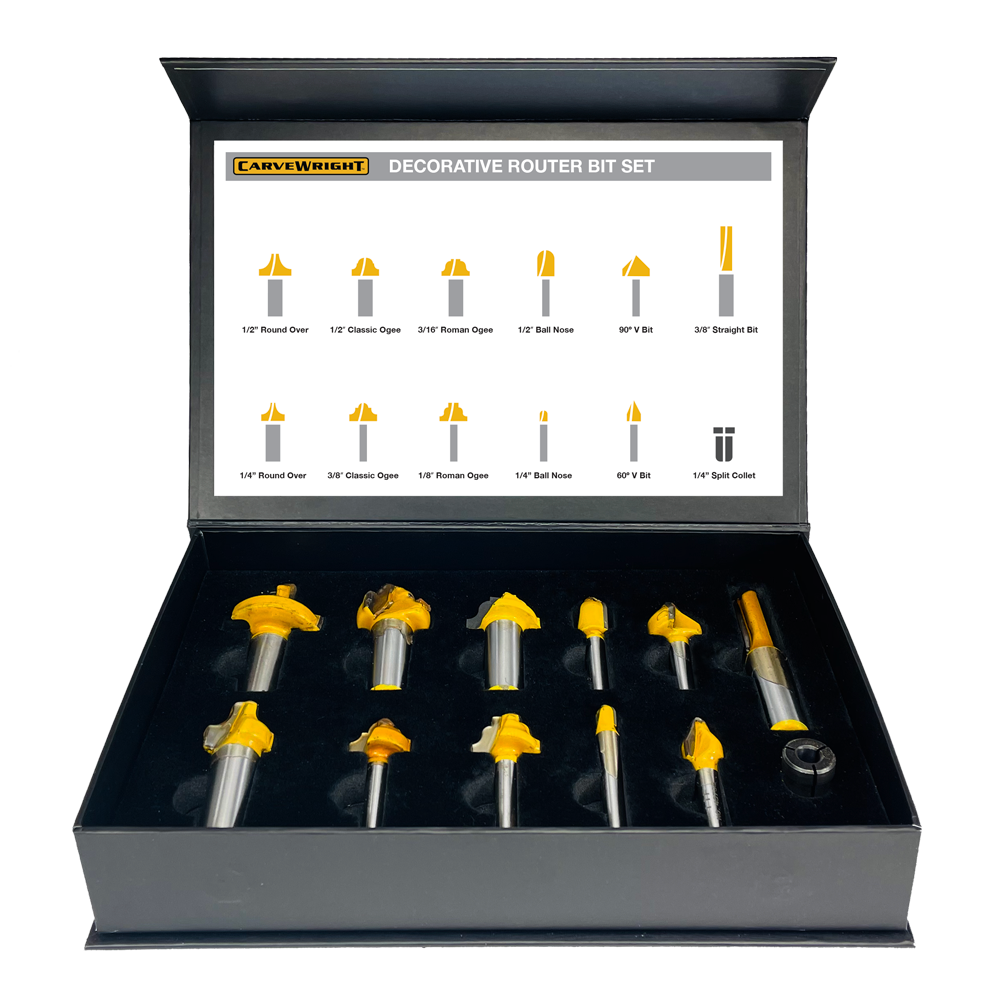

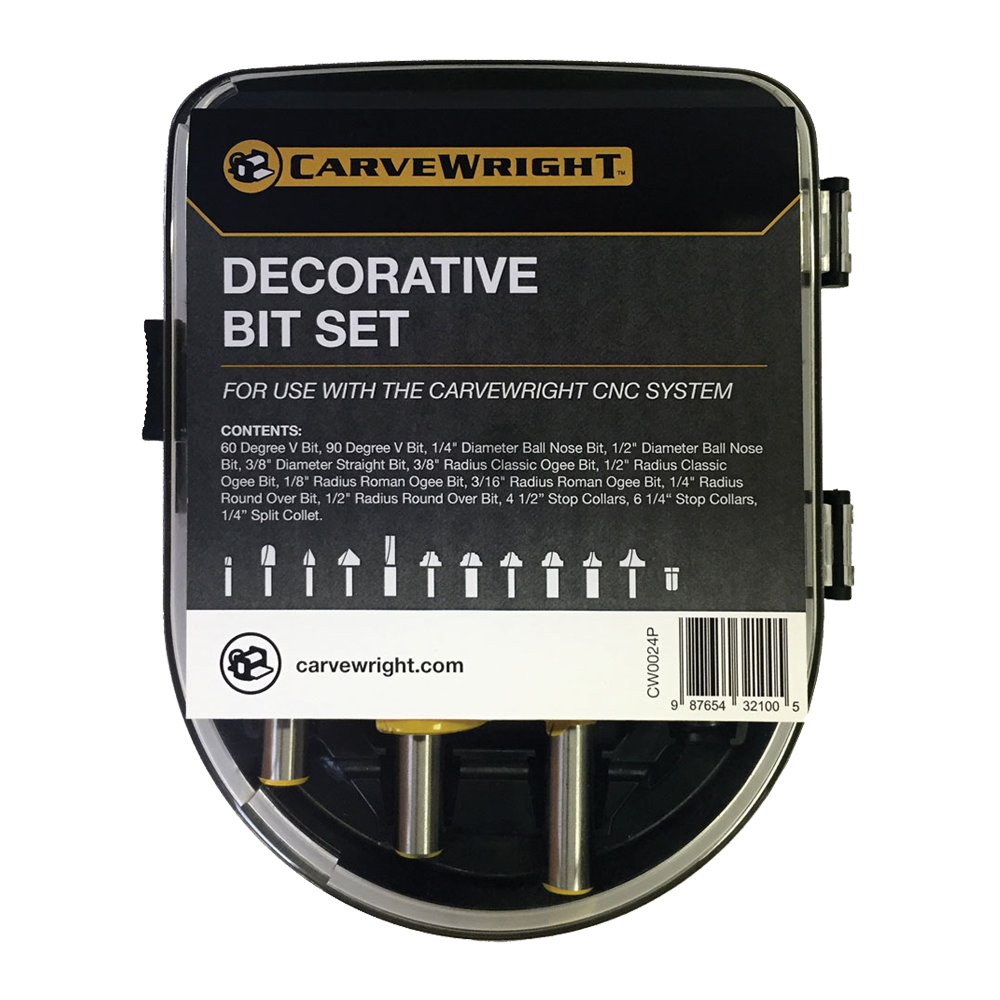

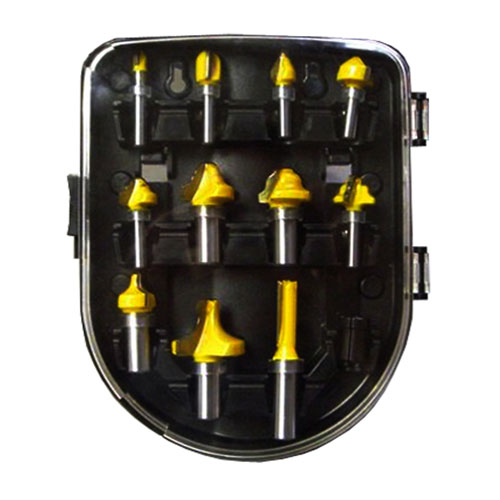

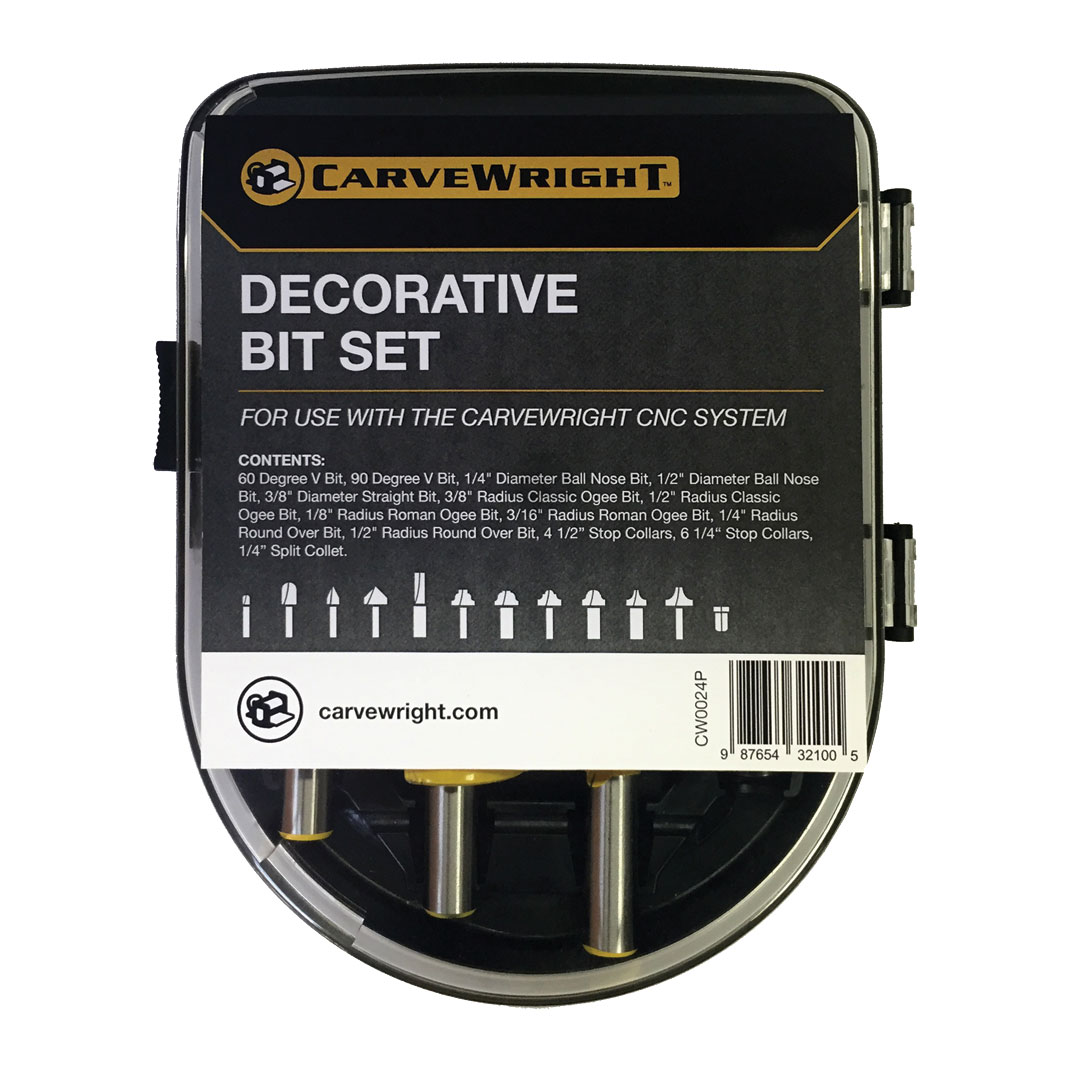

CW0024P

11-Piece Bit Set

The complete set of bits all in one place. The magnetic container allows for convenient storage virtually anywhere, even on the side of the machine.

Includes
• All 11 Router Bits
• 1/4″ Split Collet
• 6 – 1/4″ Rubber Stops
• 5 – 1/2″ Rubber Stops

$399.99 BUY NOW

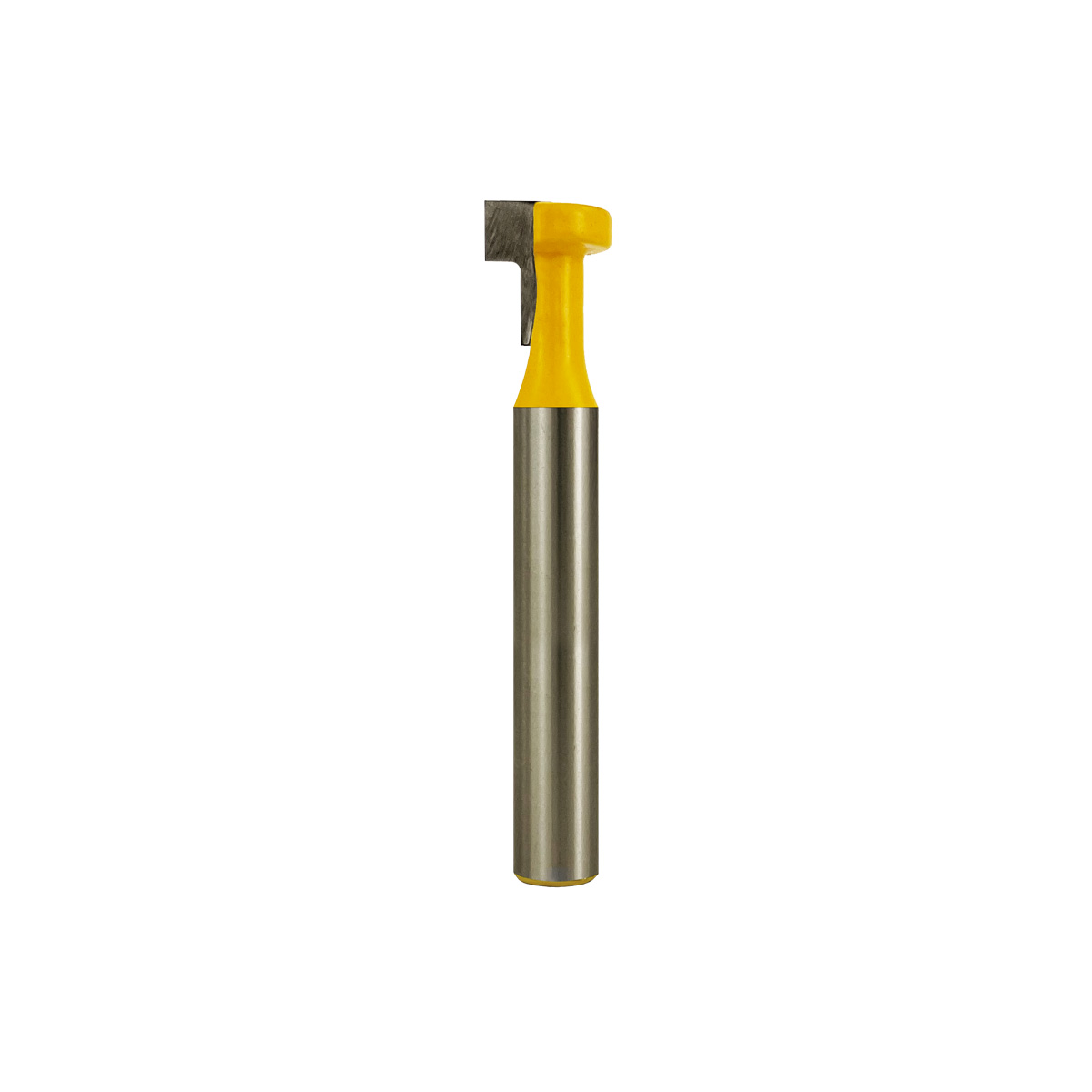

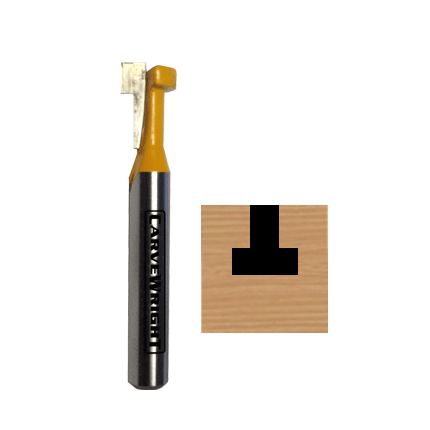

BKH3751

Keyhole Bit

Two flute, 1/4 inch steel shank, carbide tipped, keyhole bit, with 3/8 inch diameter. Sold as replacement for use with the CarveWright Keyhole function add-on.

Specifications
• Requires Keyhole Function Add-on
• Requires CarveTight Spindle
• Requires 1/4″ Split Collet for CarveTight
• Requires 1/4″ Stop Collar with CarveTight
• Requires 1.187 or newer version

$24.99 BUY NOW
