CarveWright Mage Staff Prop Project

CarveWright is the ultimate prop making tool. Paired with a 3D printer in this project, this lighted mage staff was a total hit.

Download the files I used to make this project and follow the steps below to make your own.

Design. Carve. Print. Make.

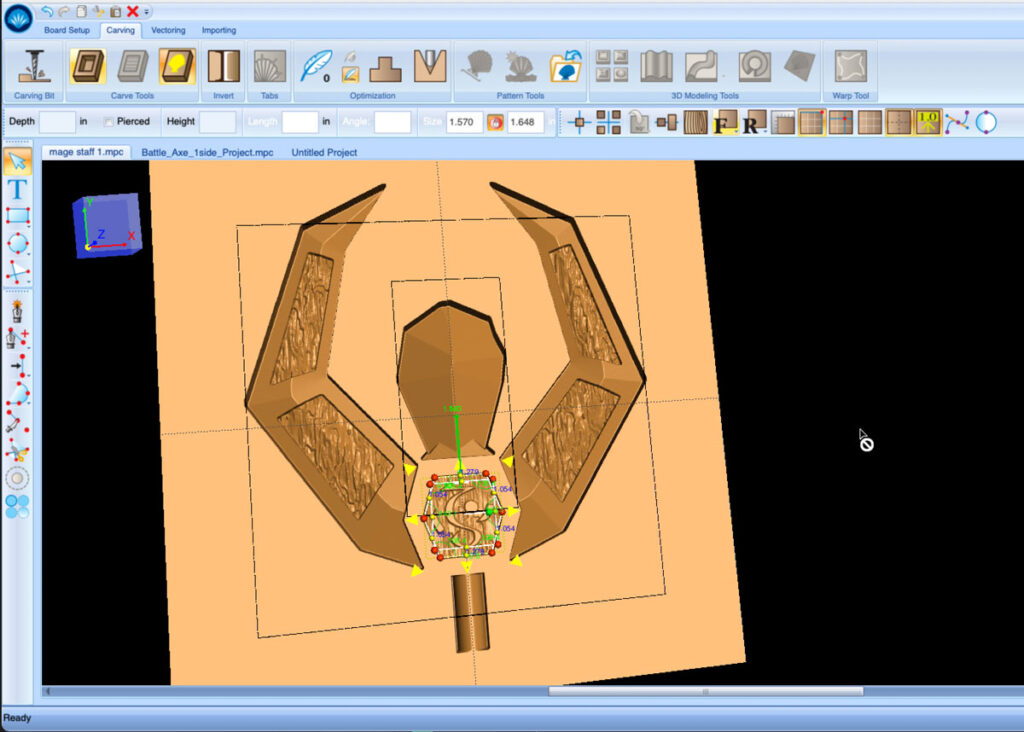

The staff head was designed and modeled in CarveWright’s Designer 4 in a couple of hours. The general shapes were drawn and it was given dimension by a couple clicks with the modeling suite tools.

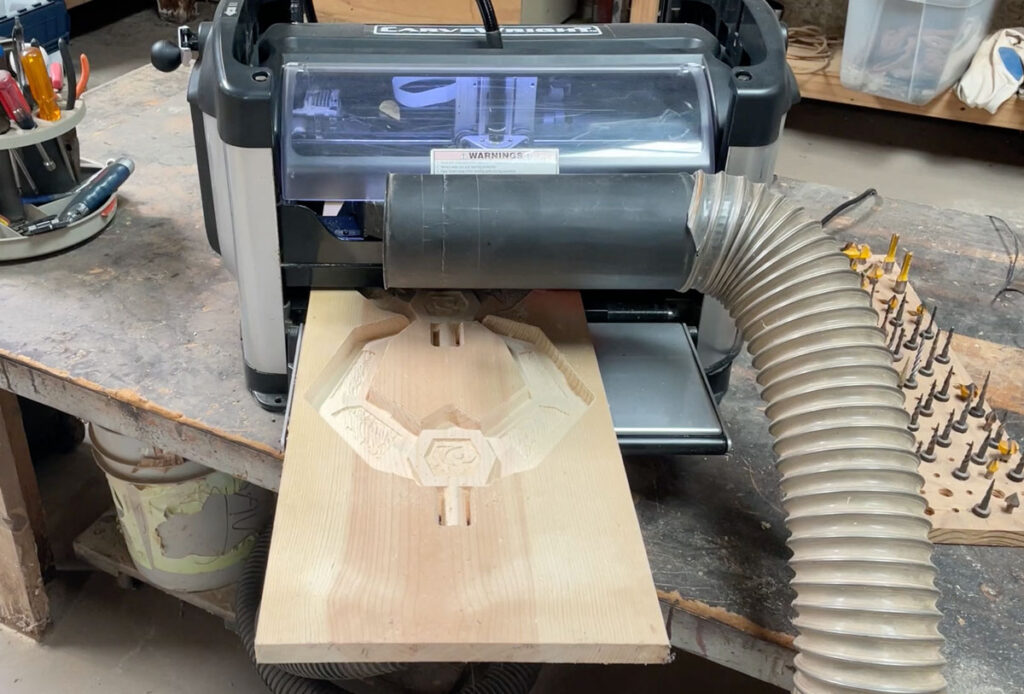

I carved 2 so they could be glued together to make both sides.

I found a crystal STL on Thingiverse and used my new AnyCubic Photon MOMO resin printer to quickly shape it in a transparent blue.

3D Printing a Crystal

I needed to fabricate a couple of other pieces before I could begin assembly. I went to Home Depot and found some pipe and PVC fittings that made a nice looking staff. Then I traced the shape of staff head onto some plexiglass and cut it out in pieces. One for each side.

plexi and pipes

Working the Pieces

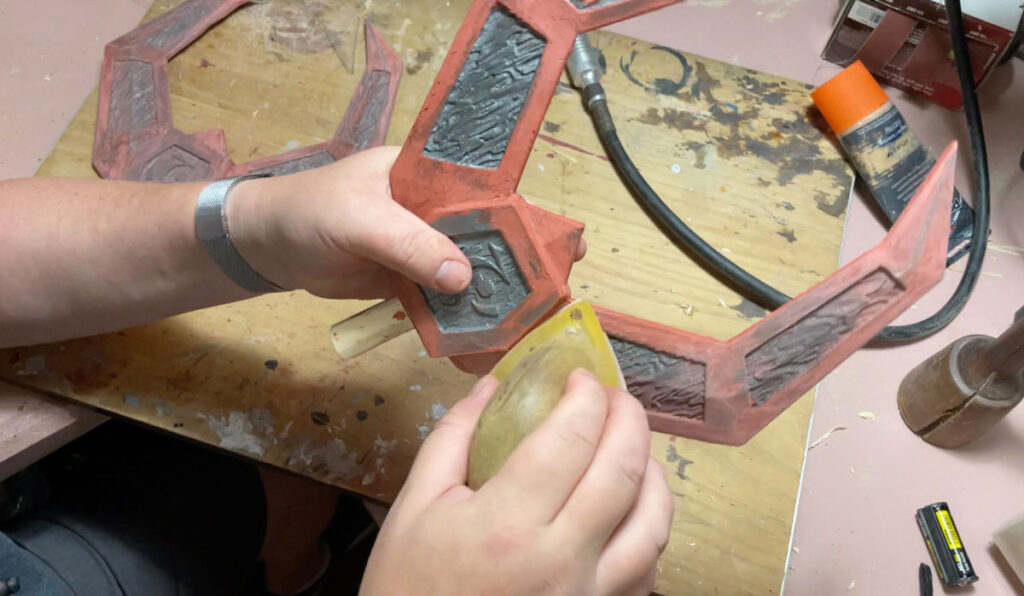

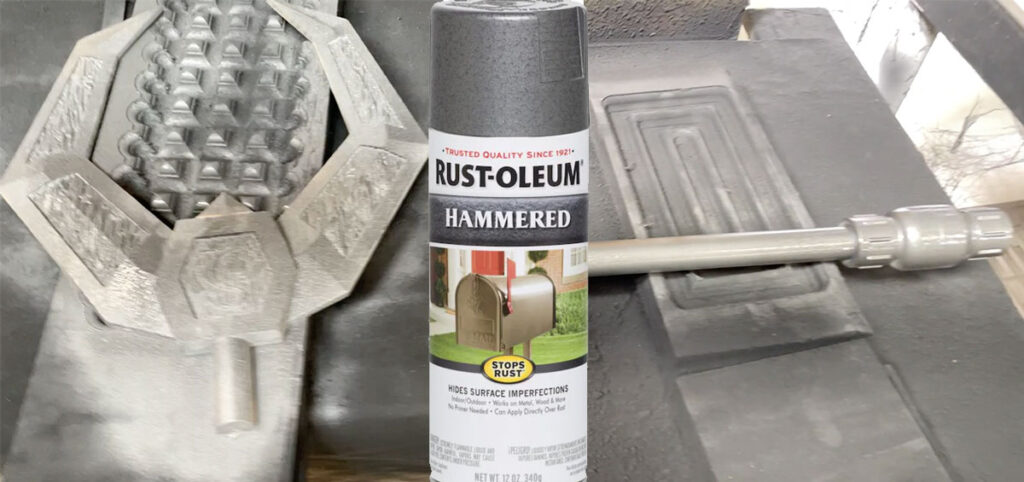

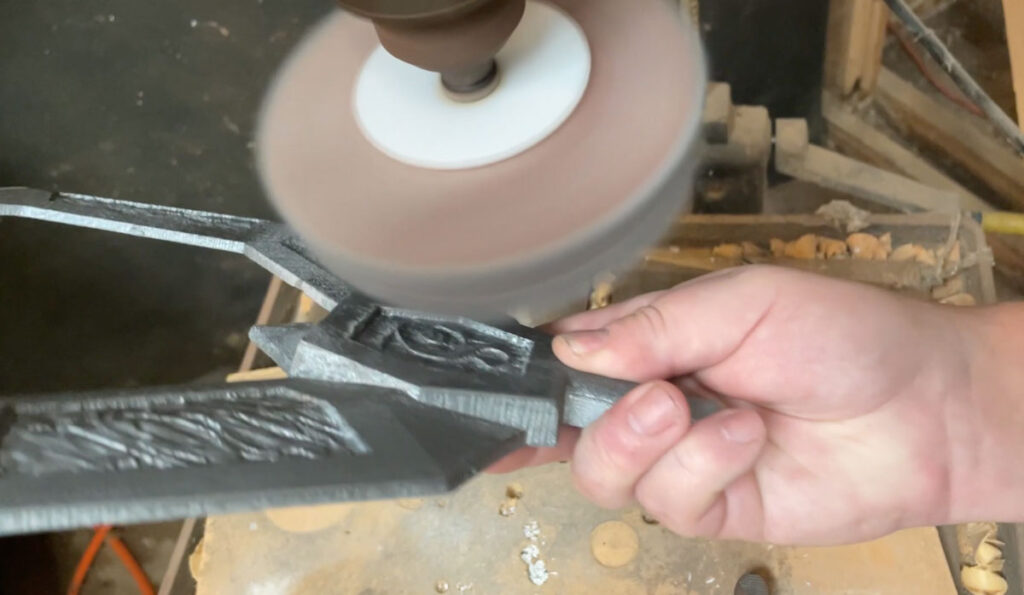

First, I did some filling and sanding to my pieces until they were smooth and could get a final coat of Rustoleum Hammered metal spray paint.

Staff carving

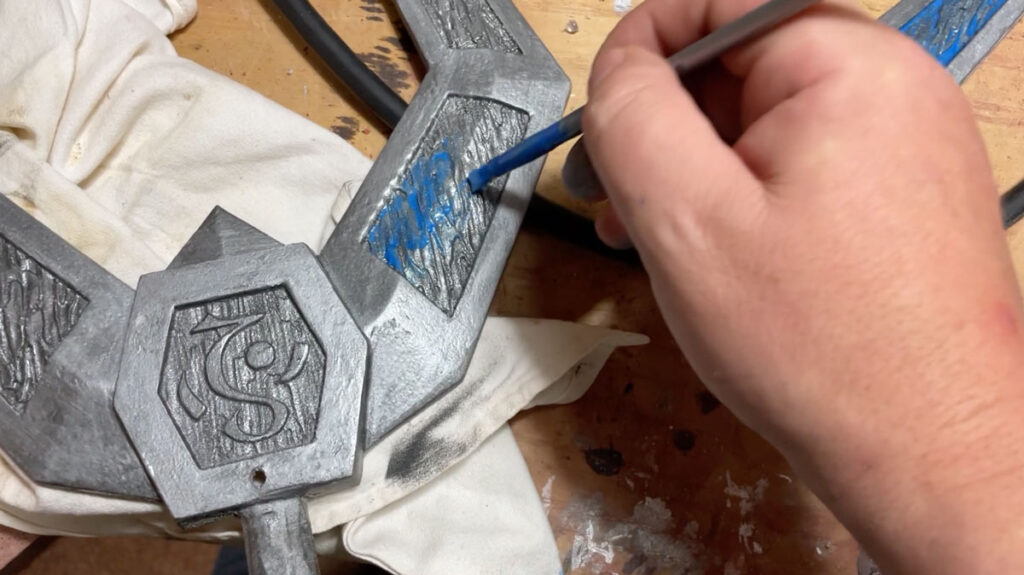

Then some details were brushed in using acrylics paints.

Assembly

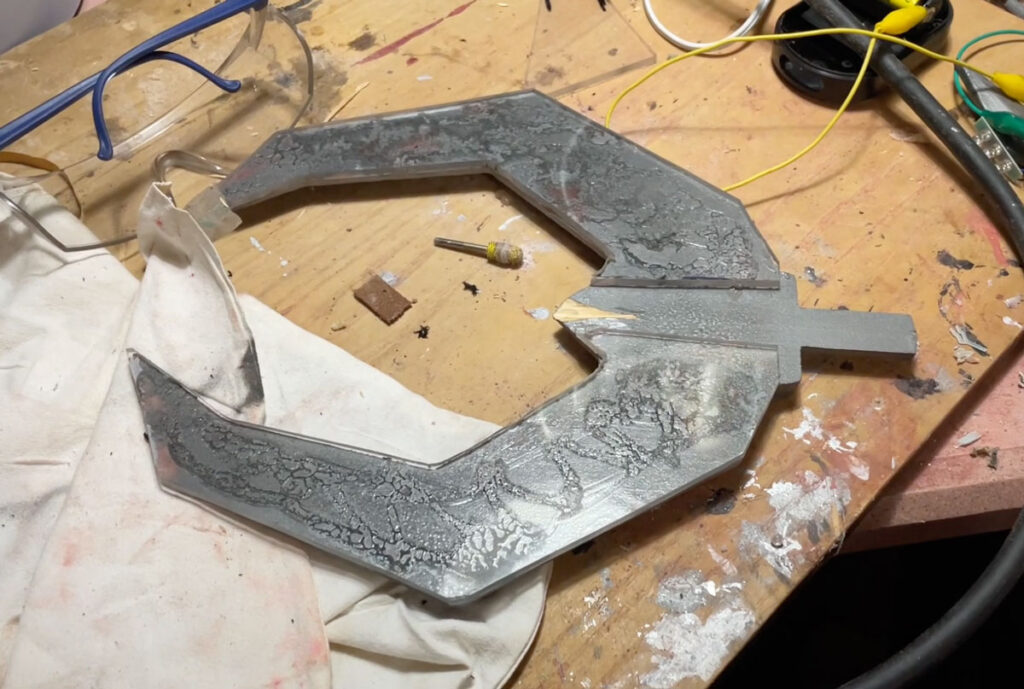

With the pieces prepared, I could begin assembly. I started with glueing the plexi pieces to the back on one half of the staff head using E6000.

Glue plexi

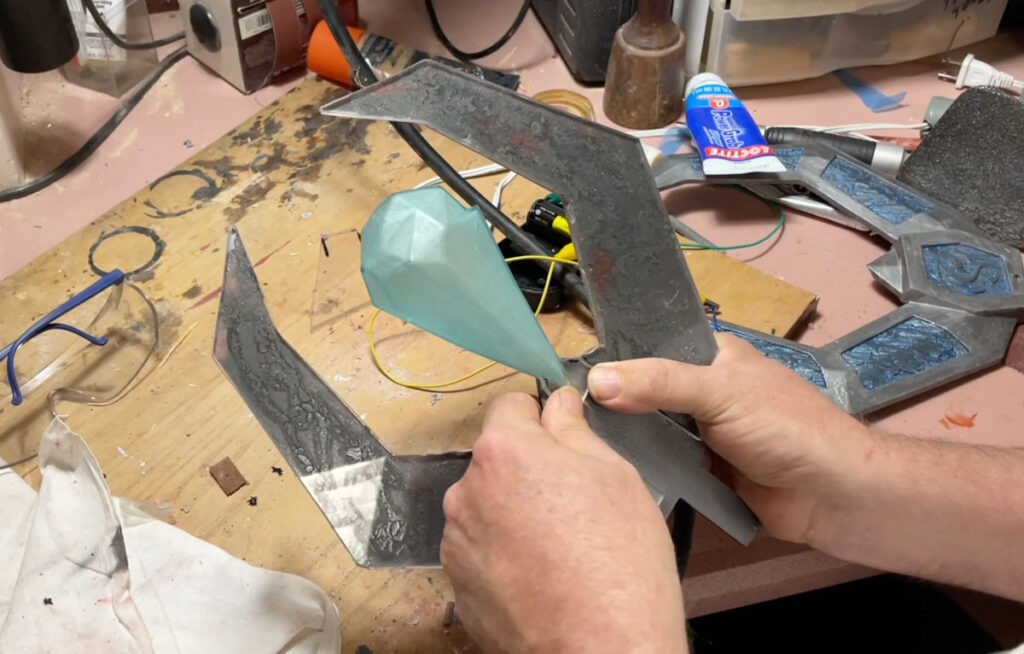

Then, I shaped the setting for the crystal and a plexi shard for a glue mount.

fitting the crystal

Next, the LED electronics were inserted.

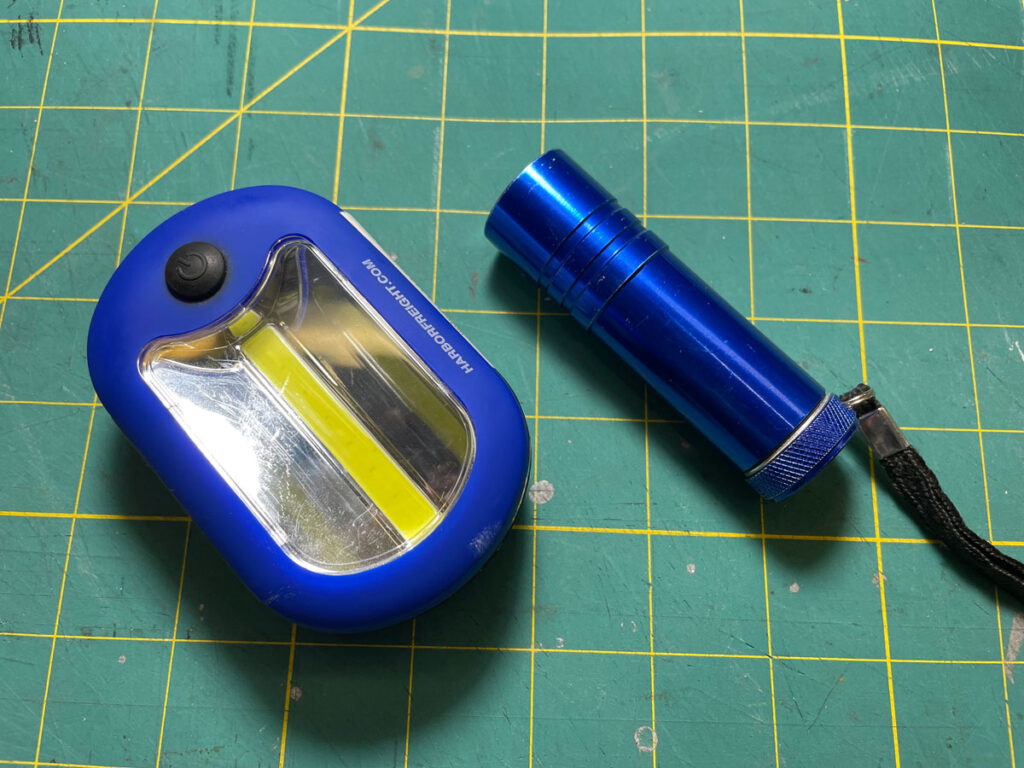

The parts were pulled from a couple of cheap flashlights I had lying around.

cheap LED flashlights

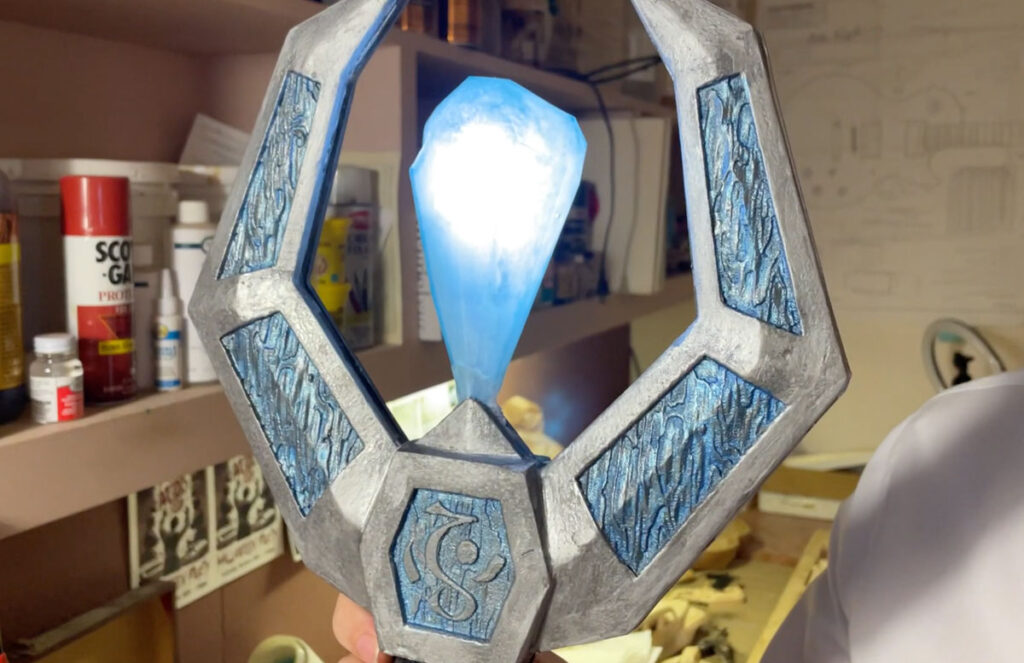

The large LED’s were place inside the crystal and the strip was placed in between the plexi pieces to side light them.

electronics

Then the wiring was run down through the top PVC pieces and the assembly was glued together.

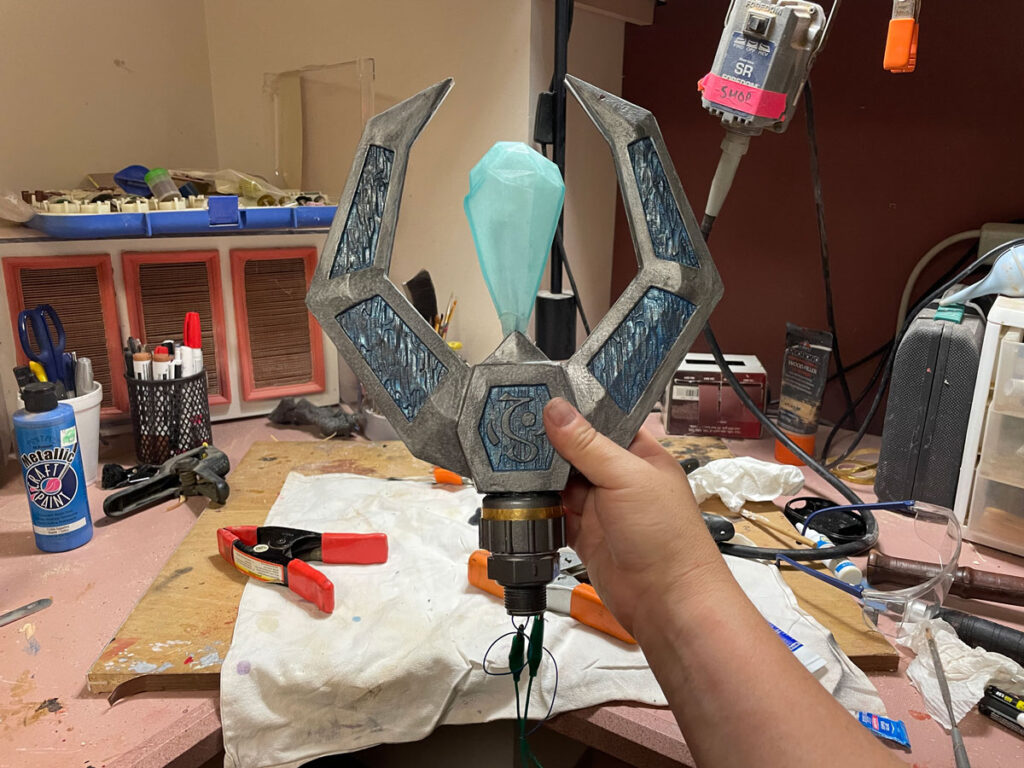

Assembled

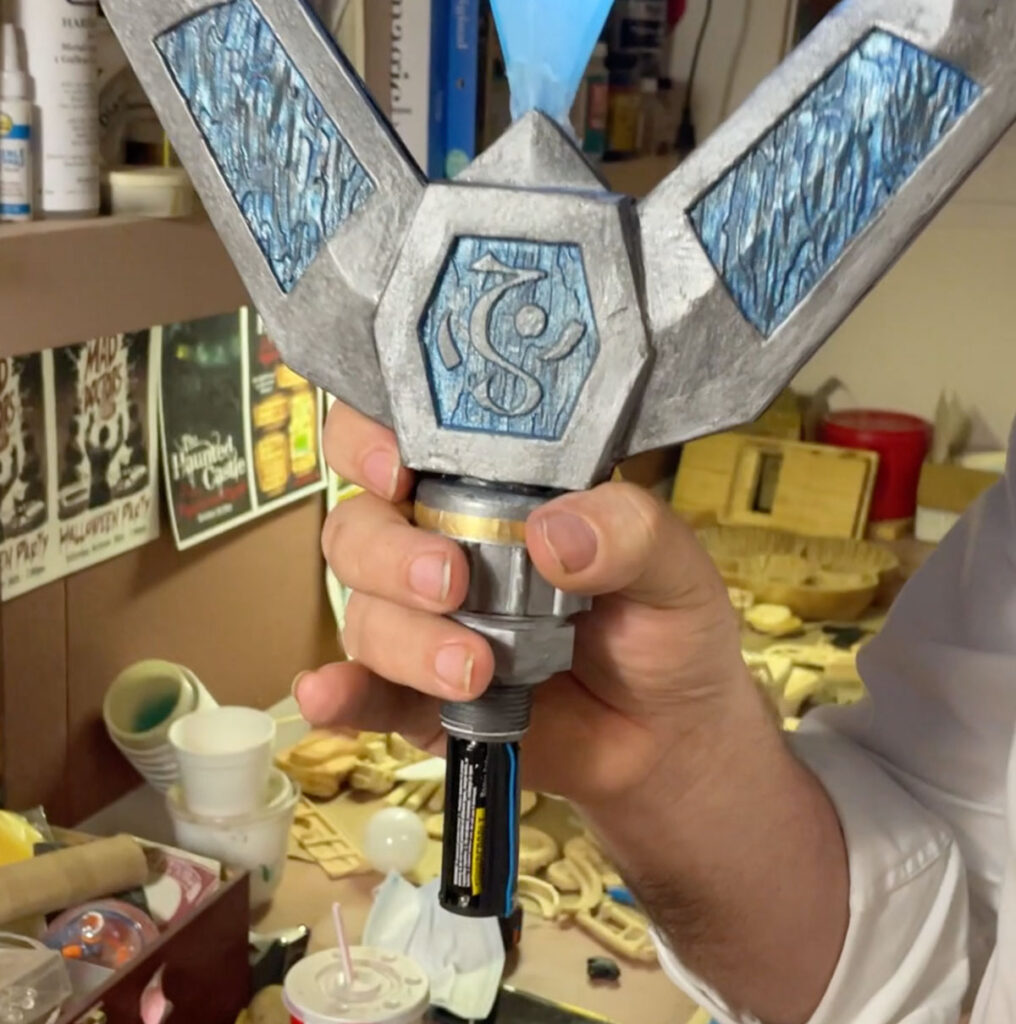

Then the wires were soldered to the round battery pack I pulled from the round flashlight and glued to the bottom of the PVC pieces with epoxy. This was done so the batteries would seat into the staff and the top could just thread onto the staff.

Then it was tested to make sure everything still worked before attaching to the staff.

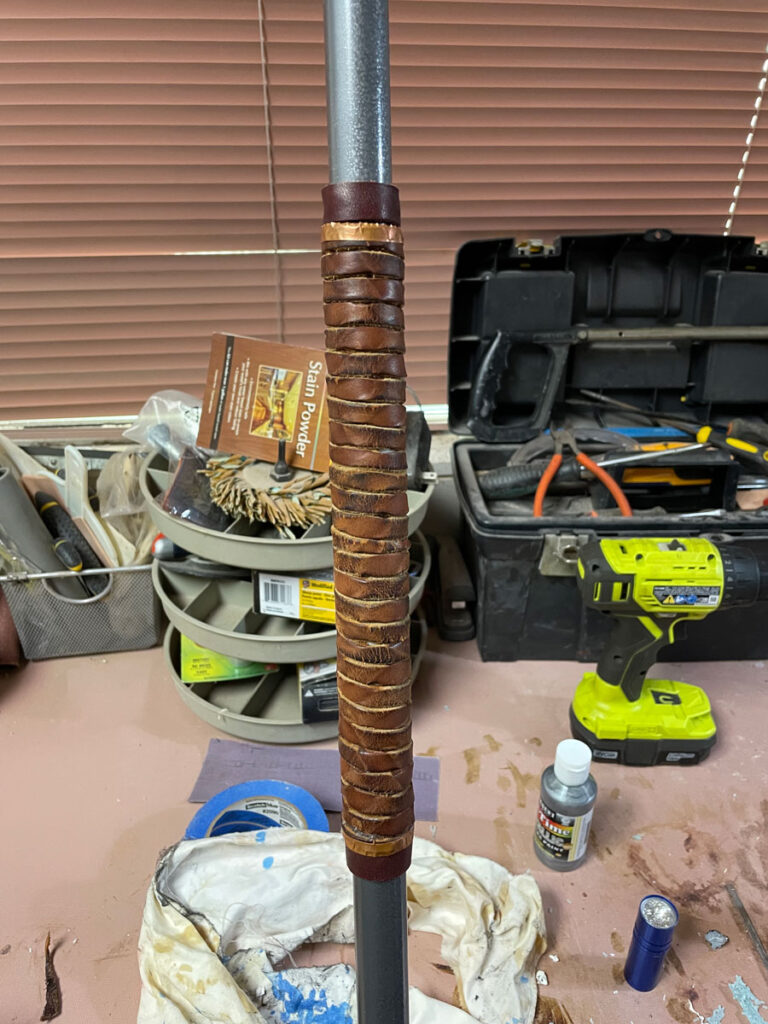

Speaking of the staff, I decorated it with brass tape and a leather wrapped handle.

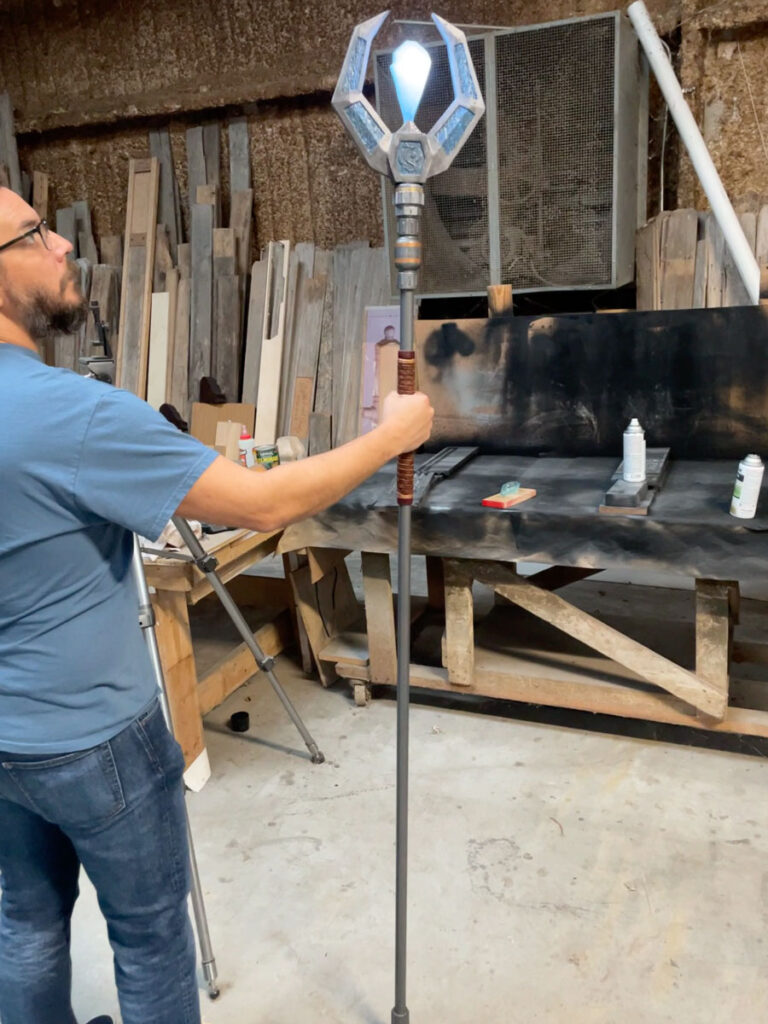

Then, the top simply screwed on and it was ready for the customer to see it.

Finished

client instpection

I think he liked it.
