A quick project came up awhile back that I thought was a pretty cool use of my CarveWright.  I play bass guitar with a band and we were discussing ordering a graphic printed bass drum head for this festival we were playing.  We kind of dragged our feet and then there wasn’t enough time to order it.  I still wanted to do something, so I had the idea to make a spray paint stencil. Worth a try, especially since I have a machine that does stuff like this.

CarveWright_CX_

This machine. This is the one.

screen-shot-2018-01-26-at-2-31-53-pmI had an image that we were using on the album and shirt of a gas masked and helmeted head.  To make this a stencil took a little drawing work.  A stencil has to be made so there are no islands, meaning no part can be free floating in the middle of a region.  Everything has to be connected the outside edges in one way or another.  Just think about what happens to all the parts when you cut it free and you’ll figure it out.  I did my drawing in Adobe Illustrator and exported it as a DXF.

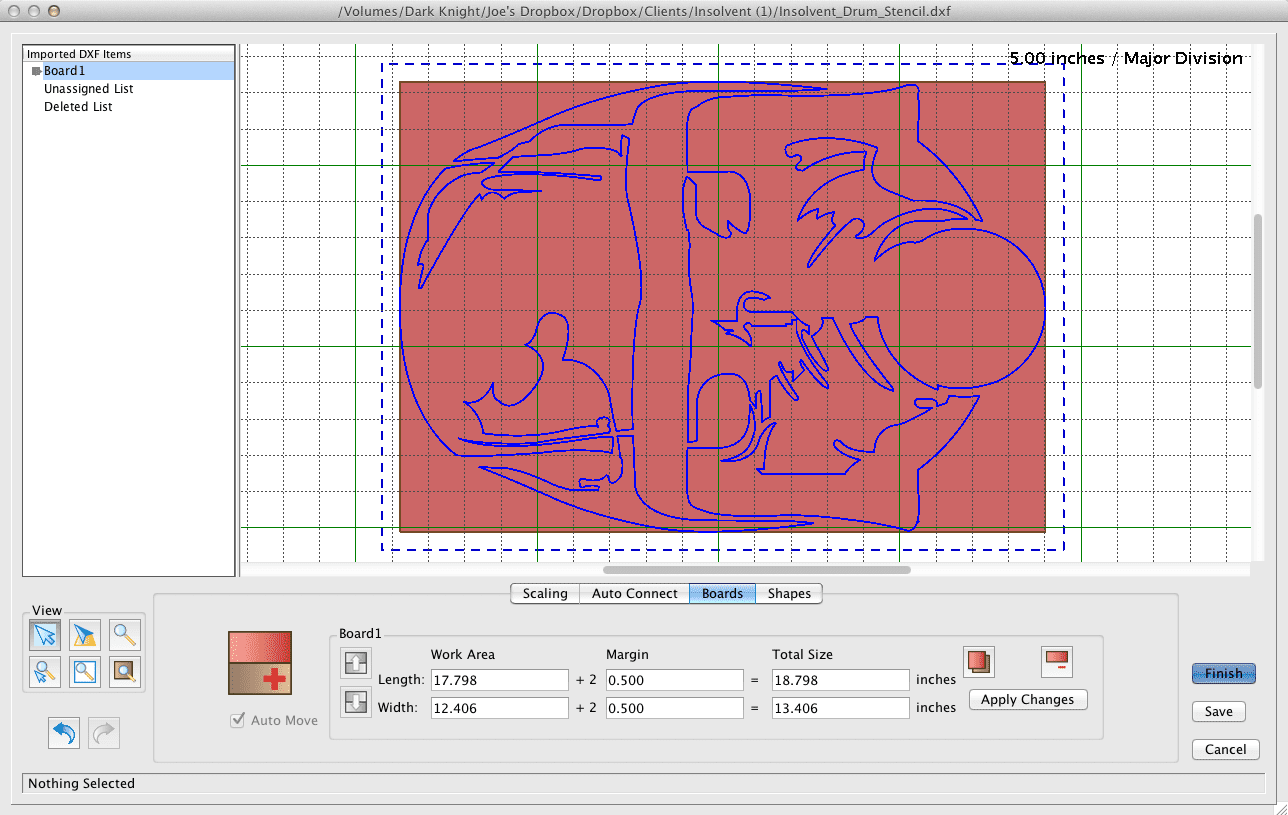

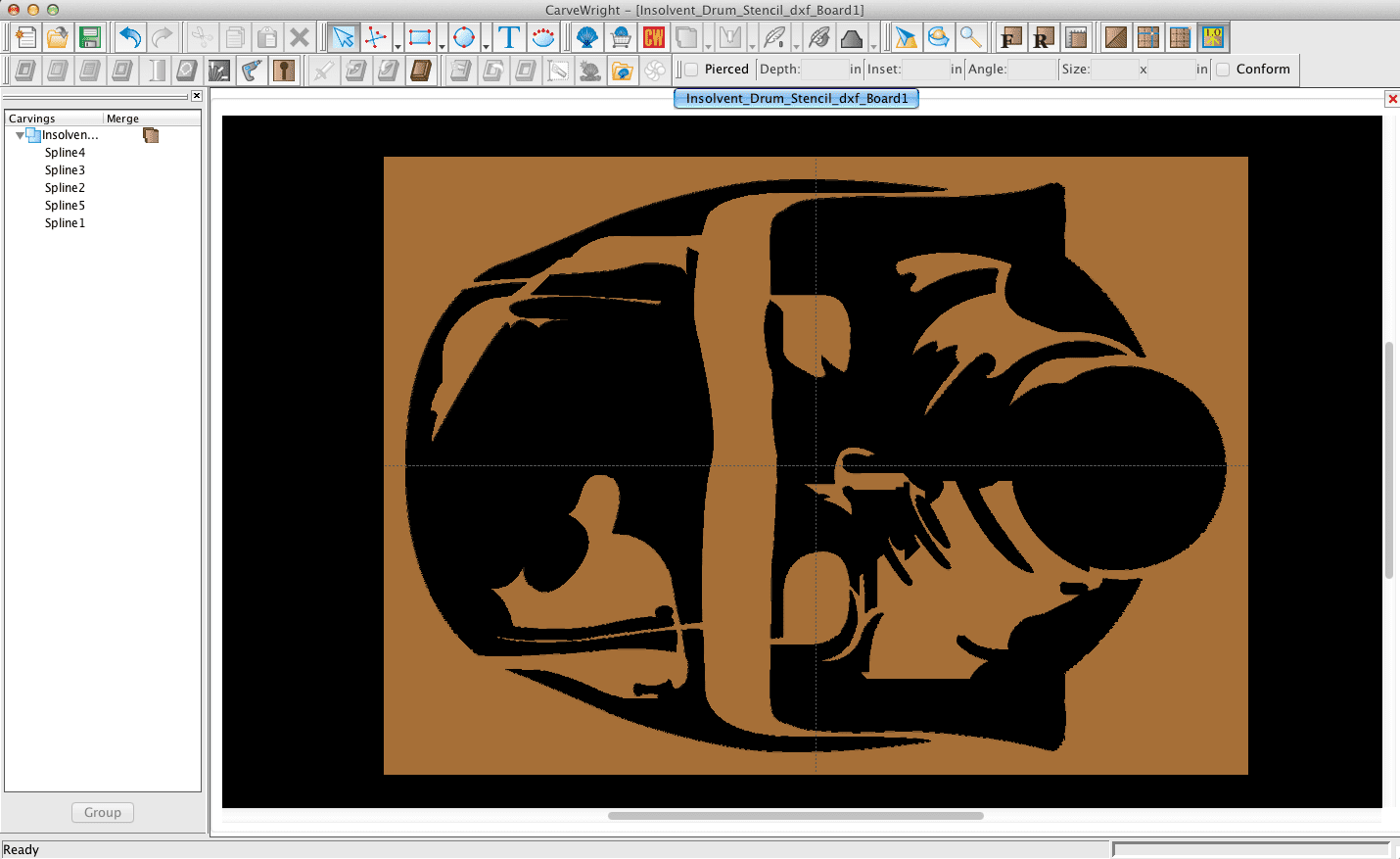

Using the DXF importer, I set my graphic size to fit the drum head, rotated it 90º, and clicked Add New Board.   That’s it.  No need to mess with any settings.  Click finish and it’ll set up your project.

DXF Stencil Cut

DXF Importer makes this so easy

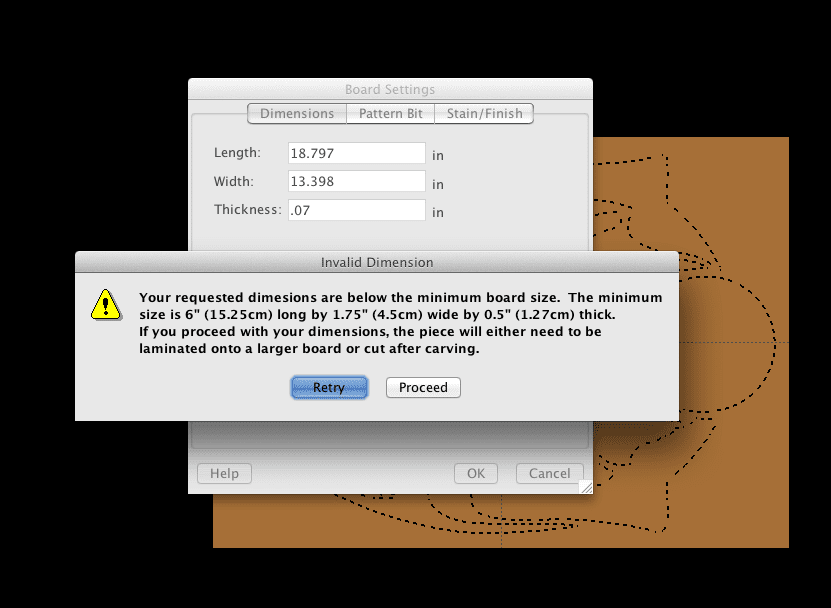

Once it’s in Project Designer, I changed the board thickness to .07″.  I planned to cut this out of poster-board around 1/16″ thick, so .07″ is slightly deeper to go all the way through. This is also the thinnest the software would let me go, so I didn’t really have a choice.

DXF Stencil Settings

Yes, I’m doing this on purpose. PROCEED!

cutpathtool_48Next, simply click the Cut Path Tool and change to the 1/16″ Cutting Bit.

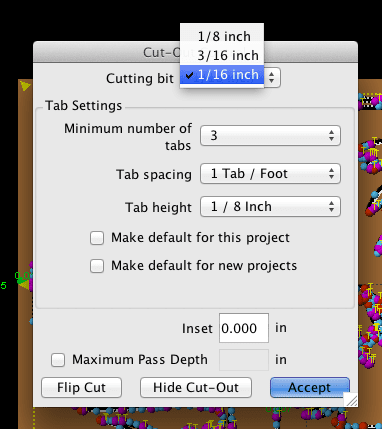

Stencil Cut Path Settings

All other settings stay at default

Project is ready to go.  Upload it and lets get our material prepped.

Stencil Project

Will look cool if it works

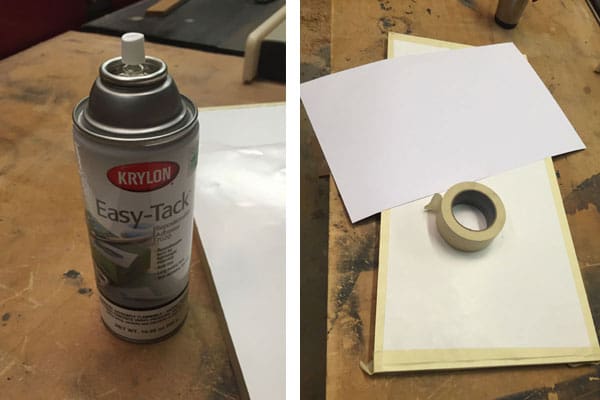

This will need a backer board to affix the poster-board to.  I had some laminated MDF around so I cut my poster-board down to fit it.  Then I sprayed it all with a removable spray adhesive and taped down the edges with masking tape.

stencil_spraytack_masking

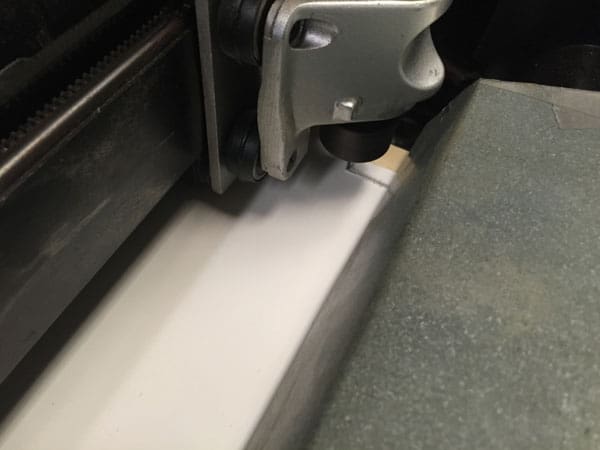

Then load your project and watch it cut.

stencil_cutting

NOTE:  This paper may have been a little too thin for this.  It worked, but I did get lifting off my backing board a lot causing some rough cuts.  All that being said, it still came out great.  I’d just like to experiment with more materials in the future to find a solution that stays put a little better.

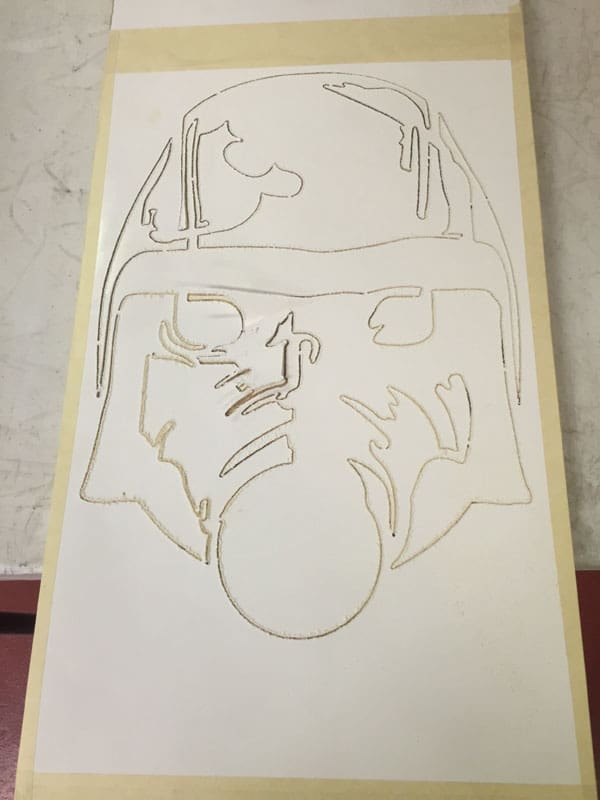

stecil_finishcut

Came out great!

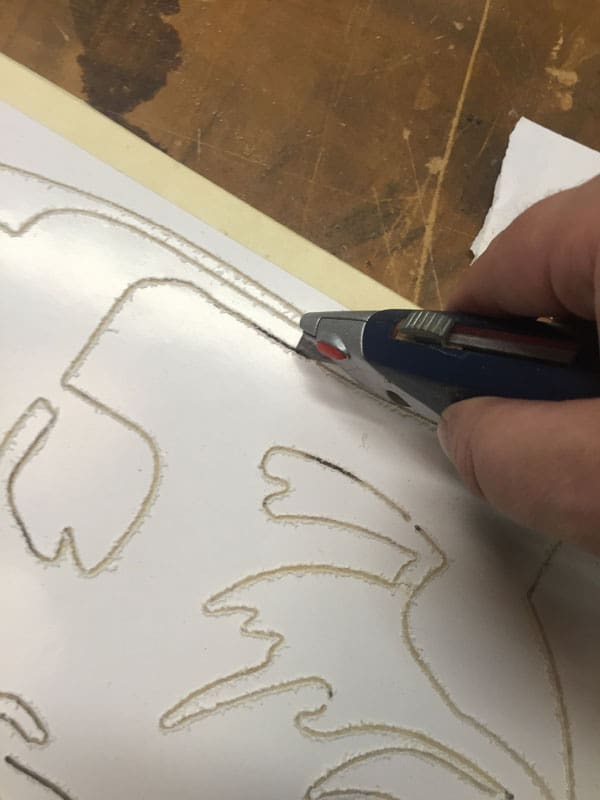

I used a knife to carefully cut the tabs and free my stencil.

stencil_cuttabs

Now for the moment of truth.

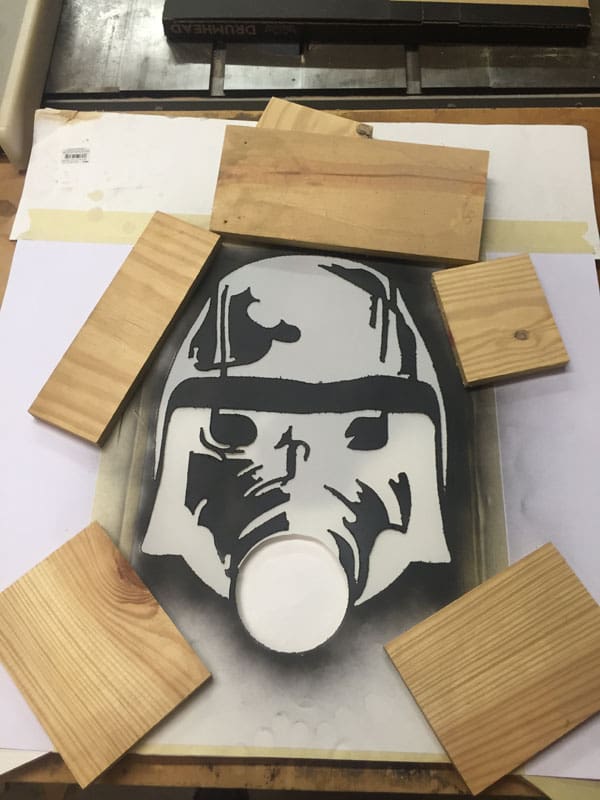

stencil_negative

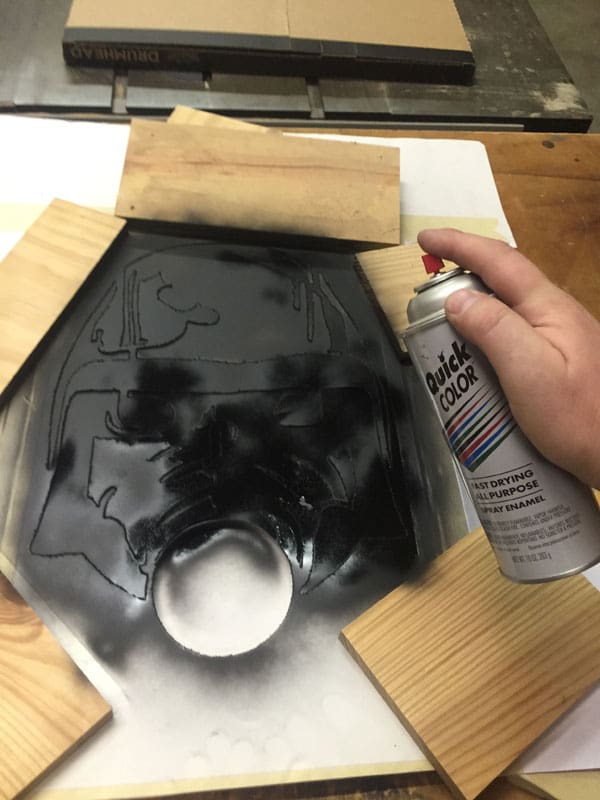

Using blocks to hold it down

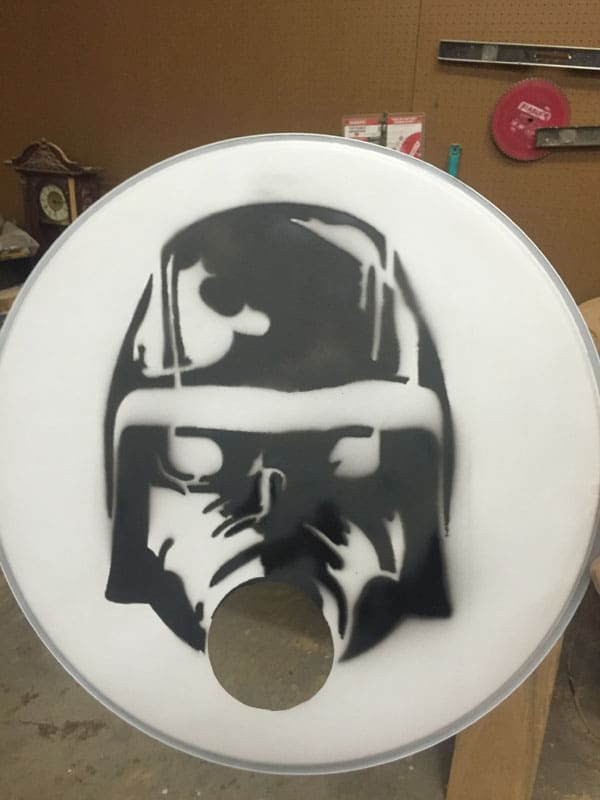

stencil_painting stencil_drumhead

This turned out exactly as I was hoping. Looked cool on stage too!

12108027_942674252453896_6451956114167660684_n

We liked the look so much, I cut a smaller stencil for our cd’s.

2015-06-19-16-22-28_preview

I’d love to see what other stencil ideas people have out there.  It was such a quick process to do.  A little more experimenting and I’m sure to get it perfected.  I’ll keep you posted as to what I find out.
