CARVING IN THE ROUND: A REVOLUTIONARY IDEA

The Rotary Jig, and accompanying software, enables the design, import, and carving of turned projects.  It’s like a lathe, but with carvings. The rotary software, included with purchase of the jig, shows the carved round piece along side a flat board where the design is manipulated.  The jig is simple to use.  Load your material in, calibrate the jig, and carve your pieces in the round.  With the STL Importer add on, you can even import STL’s directly into the rotary format. Now this is truly revolutionary.

rotary-Jig

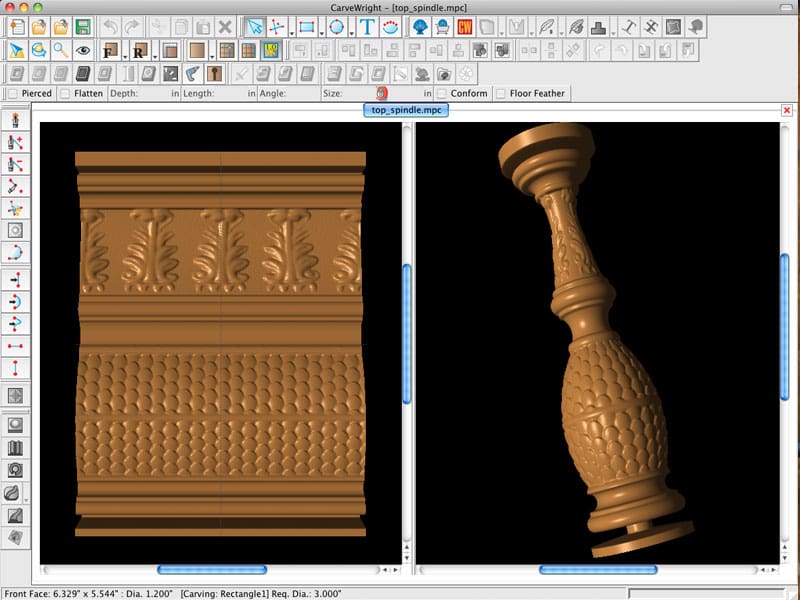

DESIGN IN THE ROUND

Rotary_software

Design your project with a turned representation in Project Designer PRO.

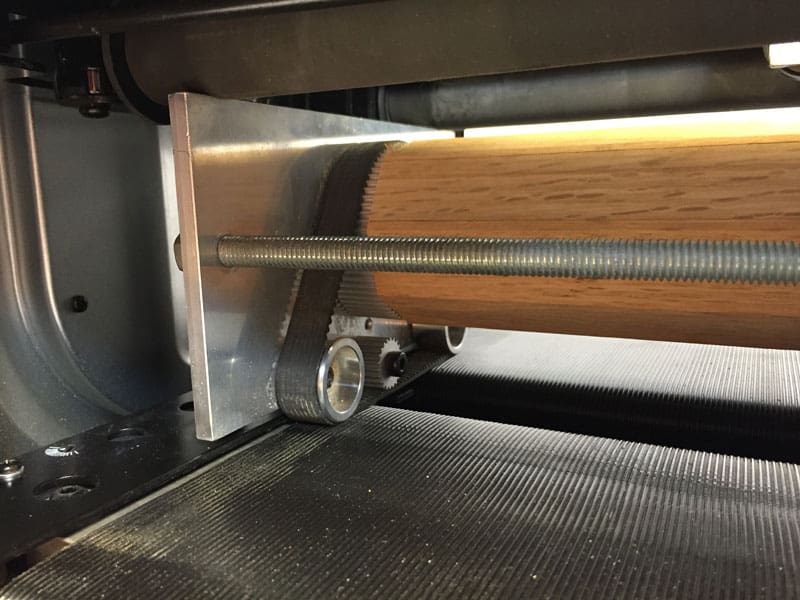

LOAD YOUR JIG

rotary_load

Prepare your material, secure it in the jig, and load it in the machine.

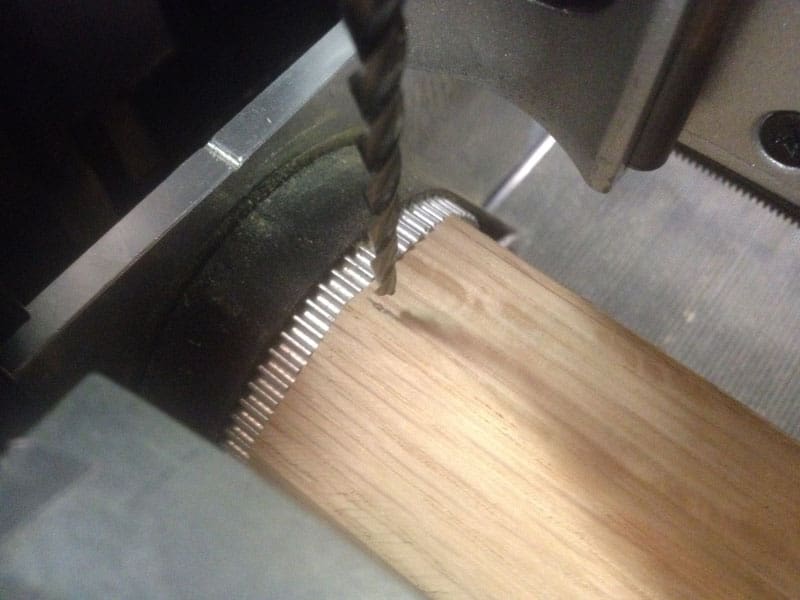

CALIBRATE YOUR JIG

rotary_calibrate

Walk through the automated rotary calibration steps to ensure accuracy.

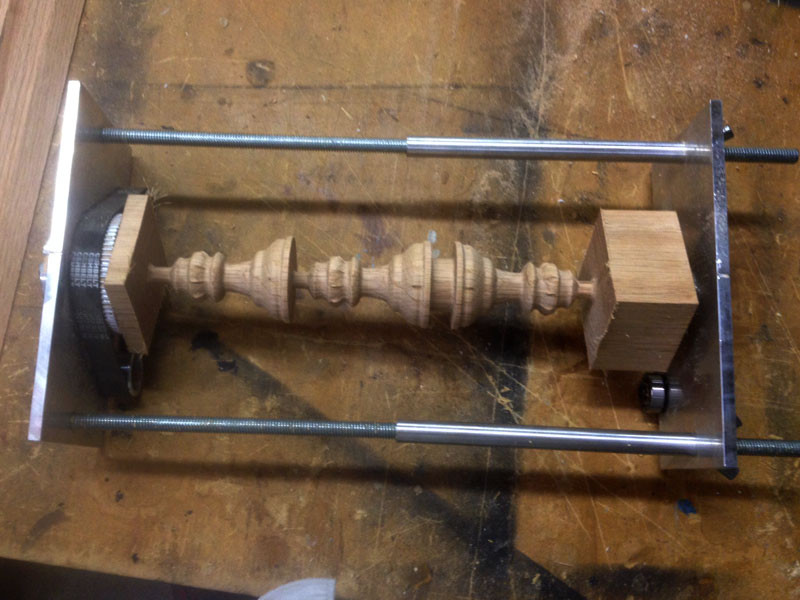

CARVE IN THE ROUND

Rotary_carved

Carve your project into an amazing turned piece.

AMAZING POSSIBLITIES

rotary_collection_bkg

Assorted rotary carves from STL files found for free on the internet.

chess_pieces

Chess pieces from the chess table project outlined in the CarveWright Build BLOG.

lamp_1

Lamp pedestal carved from glued up maple and walnut for a unique 2 toned look.

rotary_litho

Rotary carved litho on PVC pipe.  Learn how to make this project here.

SEE HOW IT WORKS

tutorial_icon_50x50Rounding A Board With the Rotary Jig– Instructions on how to round irregular shaped stock into rounded stock for turning.

manuals

TECHNICAL SPECS

Capabilities

Material Length
• Max Length = 13″
• Min Length = 5.5″

Material Diameter
• Max Diameter = 4.25″
• Min Diameter = 1″

Mechanical

Construction
• Aluminum
• Stainless Steel

Software

Software Included
• CarveWright Rotary Jig Software

Additional Software Required
• Project Designer PRO 2.005 or higher

Additional Software Recommended
• STL Importer

System Requirements

Machine Hardware
• A907 Upgrade
• CarveTight Spindle
• Heavy Duty Traction Belts
• 1/8″ Long Carving Bit (for deep carves)

Software
• Project Designer PRO
